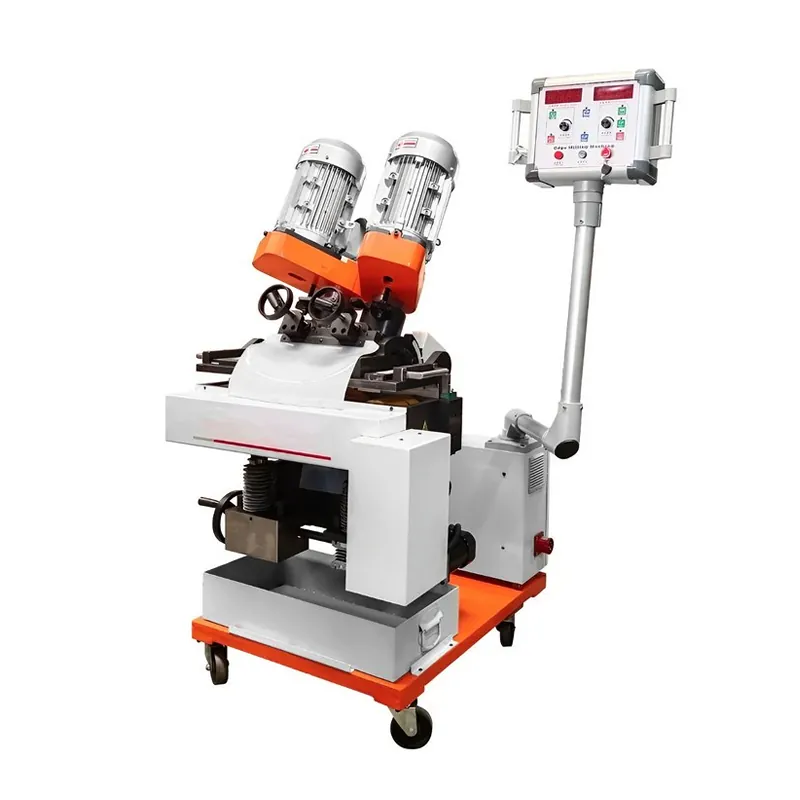

SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer
-
Bevel Angle 0°-90° Bevel Width 0-80mm Country of Origin China Feed Speed 0-1500r/min Model SPB-100B Power Source Electric Spindle Speed 750-1440r/min Total Power 6520W Weight 430kg Other Parameters Power supply voltage: AC 380V 50Hz Single bevel width: 0-20mm Clamping plate thickness: 6-100mm Clamping board width: >100mm Clamping plate length: >300mm - Flange Facing Machine for Facing Range 50-3000mm SCE Series 25-1230mm External Mount Flange Facing Machine,Electric Pipe Cutting Beveling Machine SCH Series 25-1630mm External Mount Flange Facing Machine, Hydraulic Pipe Cutting Beveling Machine SCP Series 25-1230mm External Mount Flange Facing Machine,Pneumatic Pipe Cutting Beveling Machine Line Boring Machine for Boring Diameter 55-1600mm SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SISO Series OD Mounted Portable Automatic Plate Chamfer SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
The pb-100b milling machine adopts Double Cutter Heads, which cuts more lightly and saves time and effort. Double frequency conversion speed regulation, both spindle and feed speed are adjustable, with high precision. Bevel form: V, Y, K, X, etc., bevel angle can be adjusted from 0 to 90 degrees, easy to operate.

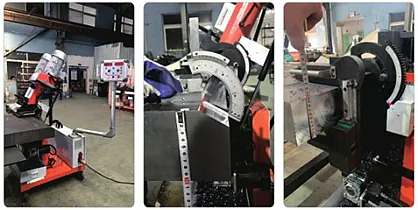

Engineer Case
Image Gallery
Dimensions
| Power supply voltage | AC 380V 50Hz |
| Total power | 6520W |
| Spindle speed | 750-1440r/min |
| Feed speed | 0-1500r/min |
| Bevel width | 0-80mm |
| Single bevel width | 0-20mm |
| Bevel angle | 0°-90° |
| Clamping plate thickness | 6-100mm |
| Clamping board width | >100mm |
| Clamping plate length | >300mm |
| Working heightWorking height | 820-860mm |
| weight | 430kg |
| Processing material | Carbon steel, stainless steel, aluminum alloy, copper, composite board |
| a | w |
| 0° | 75mm |
| 15° | 70mm |
| 30° | 80mm |
| 37.5° | 80mm |
| 90° | 40mm |
