Line Boring Machine for Boring Diameter 55-1600mm
-
Accuracy ±0.1-0.5mm Country of Origin China Model 50-300 Precision High Precision Rotation Speed 0-118 r/min Other Parameters Boring Diameter: 55-1600 mm（2.17-63 inches） Feed Stoke: 400-600 mm Single Side Feed Volume: 0-3 mm Drive Power: Electric, Hydraulic, Servo Roughness: Ra 1.6-3.2 Installation Method: Welding Line Boring Bar Length: 2m (standard) - Flange Facing Machine for Facing Range 50-3000mm SCE Series 25-1230mm External Mount Flange Facing Machine,Electric Pipe Cutting Beveling Machine SCH Series 25-1630mm External Mount Flange Facing Machine, Hydraulic Pipe Cutting Beveling Machine SCP Series 25-1230mm External Mount Flange Facing Machine,Pneumatic Pipe Cutting Beveling Machine Line Boring Machine for Boring Diameter 55-1600mm SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SISO Series OD Mounted Portable Automatic Plate Chamfer SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Our Line Boring Machines support boring diameters from 2.17 to 63 inches (55 to 1600 mm), with the precision and speed of stationary machines.With the option to add various accessories, it handles end-face processing and surfacing effectively. Additionally, the automatic hole repair welding machine combines boring and welding in one integrated system.
Feature:
Alloy Steel Body, Compact structure, Light weight, easy to carry out.
Small working radius, it can be adapted to variety of the narrow space, high-altitude complex processing needs.
Boring bar is made of high-intensity alloy steel, High Strength.
Can selected different connect head, can achieve different processing. Such as pipe face processing, flanges face processing, bore weld etc.

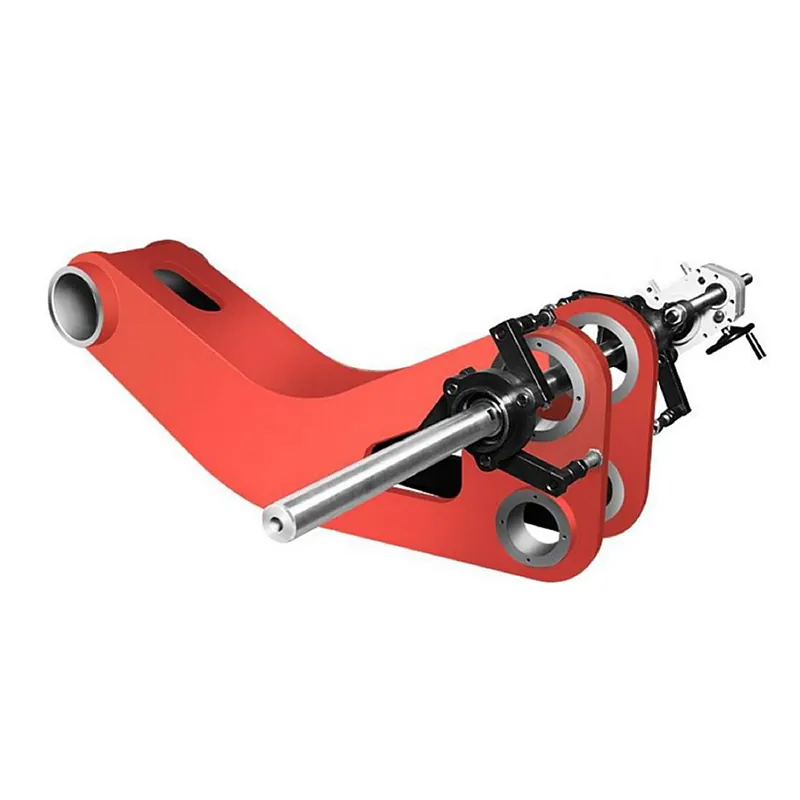

Machine is widely used in the processing and repair of excavators, loaders, crawler cranes and large marine cranes.

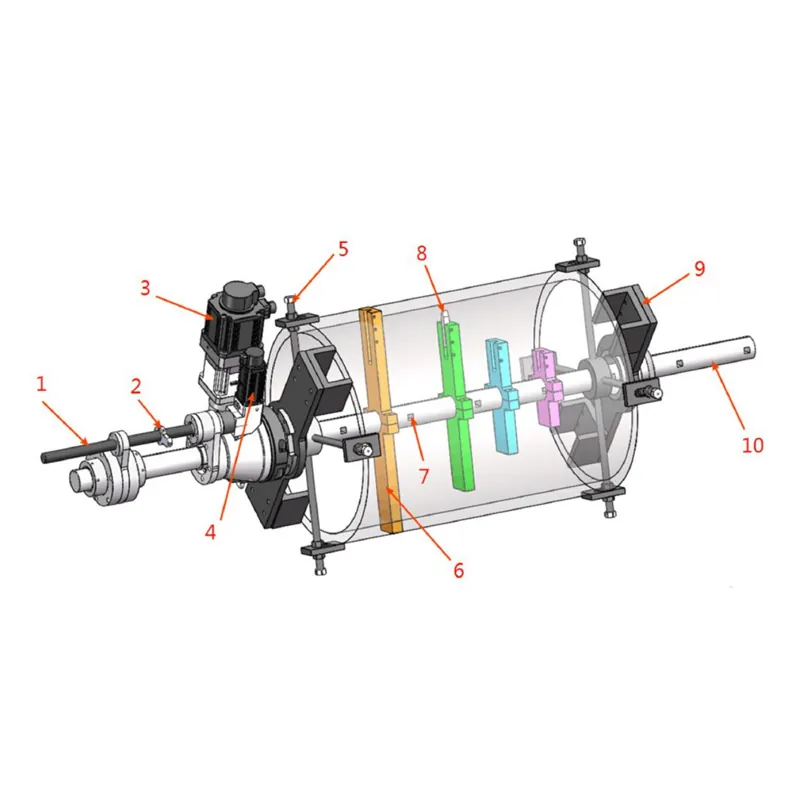

| Number | Parts Name | Number | Parts Name |
| 1 | Feed Screw Rod | 6 | Tool Holder |
| 2 | Feed Limit Block | 7 | Cutter Hole |
| 3 | Machine Driven Motor | 8 | Boring Bar Cutter |
| 4 | Feed Motor | 9 | Support Base |
| 5 | Center Device | 10 | Boring Bar |
According to the size of the inner hole of the workpiece, choose a suitable tool holder (No.6)
Image Gallery
Details
Series Comparison
| Model | Boring Diameter | Rotation Speed | Feed Stoke | Single Side Feed Volume |
| mm | r/min | mm | mm | |
| 50 | 55-300 | 0-118 | 400 | 0-2 |
| 60 | 65-600 | 0-118 | 500 | 0-2.5 |
| 90 | 100-800 | 0-78 | 600 | 0-3 |
| 110 | 180-900 | 0-62 | According to boring bar length | 0-3 |
| 150 | 220-1000 | 0-55 | 0-3 | |
| 200 | 380-1200 | 0-38 | 0-3 | |
| 300 | 460-1600 | 0-28 | 0-3 |
Driven: SBS (Servo Motor-Electric ), SBH (Hydraulic )
Note: other boring diameter, other driven and bar length can be customized.
