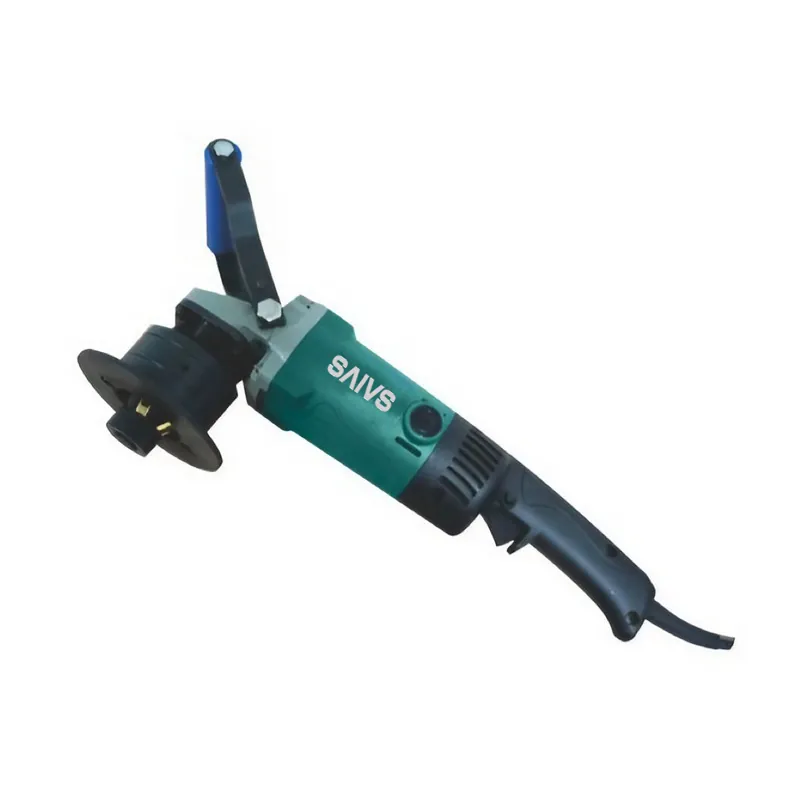

SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
-
Country of Origin China Model SPB-15 Motor Power 2450W Processing Materials Carbon Steel,Stainless Steel, Tool Bit Qty 4/5 pieces Voltage 220-240V Weight 8.5Kg Other Parameters Working Frequency: 50/60HZ Rotation: 500-1500mm/min Beveling Width: 1-15mm(Q235) - Flange Facing Machine for Facing Range 50-3000mm SCE Series 25-1230mm External Mount Flange Facing Machine,Electric Pipe Cutting Beveling Machine SCH Series 25-1630mm External Mount Flange Facing Machine, Hydraulic Pipe Cutting Beveling Machine SCP Series 25-1230mm External Mount Flange Facing Machine,Pneumatic Pipe Cutting Beveling Machine Line Boring Machine for Boring Diameter 55-1600mm SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SISO Series OD Mounted Portable Automatic Plate Chamfer SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Multi-function groove machine is a manual operation of electric tools, this machine is suitable for processing before welding groove (can be processed into K, V, X, Y type groove), not only can be carried out on the plate groove processing and metal materials deflating but also to bevel the pipe inner hole machining. Its versatility and flexibility can be a lot of improve work efficiency and make it an attractive device, the machine structure is compact, whereas the environment is complex and difficult for machining operations.
Characteristics of beveling machine
Light is the most practical
High speed, high precision
Cold work completely, does not affect the pipe material
Multi-function groove machine main product Performance
This series is installed outside diameter type groove machine is lightweight and is easy to carry.
Easy to install and quick, the swelling mechanism inserted into the pipe inner can automatically locate the center.
The machine in addition to materials such as carbon steel, stainless steel, alloy steel pipe of the U, V type weld groove, chamfering, cutting edge processing, and the convex flange processed after butt welding.
Image Gallery
Dimensions
| Model | SPB-15 |
| Voltage | 220-240V |
| Working Frequency | 50/60HZ |
| Motor Power | 2450W |
| Rotation | 500-1500mm/min |
| Beveling Angle | 30°（The standard）20°37.5°45°55°60°（optional） |
| Beveling Width | 1-15mm(Q235) |
| Weight | 8.5Kg |
| Tool Bit Qty | 4/5 pieces |
Details
Series Comparison
| Model | SPB-15 | SPB-10 |
| Voltage | 220-240V | 220-240V |
| Working Frequency | 50/60HZ | 50/60HZ |
| Motor Power | 2450W | 1400W |
| Rotation | 500-1500mm/min | 500-1000mm/min |
| Beveling Angle | 30°（The standard）20°37.5°45°55°60°（optional） | 30°（Standard） 37.5°45° |
| Beveling Width | 1-15mm(Q235) | 1-10mm |
| Weight | 8.5Kg | 6.5Kg |
| Tool Bit Qty | 4/5pcs | 4/5pcs |
