SPB-100 1-100mm Automatic Feed Plate Chamfer
-
Bevel Angle 0° - 90° Bevel Width 1-100mm Clamp Thickness 8-100mm Country of Origin China Feed Speed 0-1500r/min Layout Vertical Model SPB-100 Plate Length >300mm Plate Width >200mm Power Source Electric Spindle Speed 750-1440r/min Total Power 6400W Voltage AC 3PH 380V 50HZ Worktable Height 850-900mm - Flange Facing Machine for Facing Range 50-3000mm SCE Series 25-1230mm External Mount Flange Facing Machine,Electric Pipe Cutting Beveling Machine SCH Series 25-1630mm External Mount Flange Facing Machine, Hydraulic Pipe Cutting Beveling Machine SCP Series 25-1230mm External Mount Flange Facing Machine,Pneumatic Pipe Cutting Beveling Machine Line Boring Machine for Boring Diameter 55-1600mm SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SISO Series OD Mounted Portable Automatic Plate Chamfer SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
The PB-100 edge milling machine is characterized by its small size, lightweight, ease of movement, and simple operation, making it suitable for small factories. The processing speed is not inferior to that of a milling machine.
Main Features
1.Cold processed,No sparks Will not affect the material of plate.
2.Double motors,Stronger power
3.Double frequency conversion speed regulation,both spindle and feed speed are adjustable
4.Automatic feed，Automatic marching,high efficiency,one person can operate multiple devicesat the same time
5.Smooth slope, surface finish can be as high as Ra3.2-Ra6.3
6.Numerical control display screen,simple operation,Bevel speed can be adjustable,high precision
7.Equipped with CNC blades,Low consumables
9.Can process carbon steel,stainless steel,alloy steel,titanium,and composite plates etc

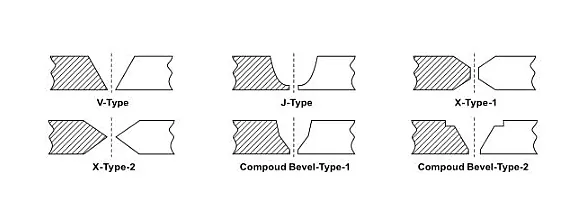

Bevel Type

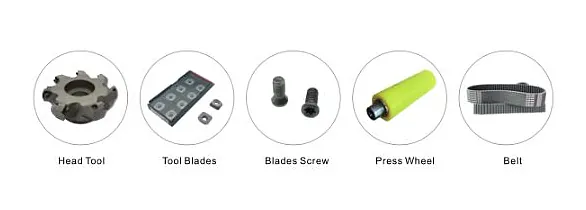

Tool Parts

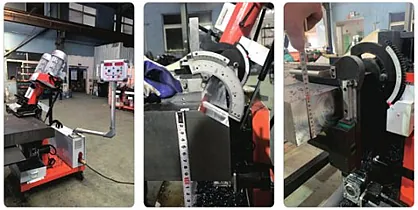

Engineer Case
Image Gallery
Dimensions
| Voltage | AC 3PH 380V 50HZ |
| Total power | 6400W |
| Spindle speed | 750-1440r/min |
| Feed speed | 0-1500r/min |
| Bevel width | 1-100mm |
| Single bevel width | 1-30mm |
| Bevel angle | 0°-90° |
| Clamp thickness | 8-100mm |
| Plate width | >200mm |
| Plate length | >300mm |
| Worktable height | 850-900mm |
| N.W | 440KGS |
| Process material | CS, SS, Aluminum, bronze, compound plate |
*Non-standard machines are aviable according to customer's requirement.
