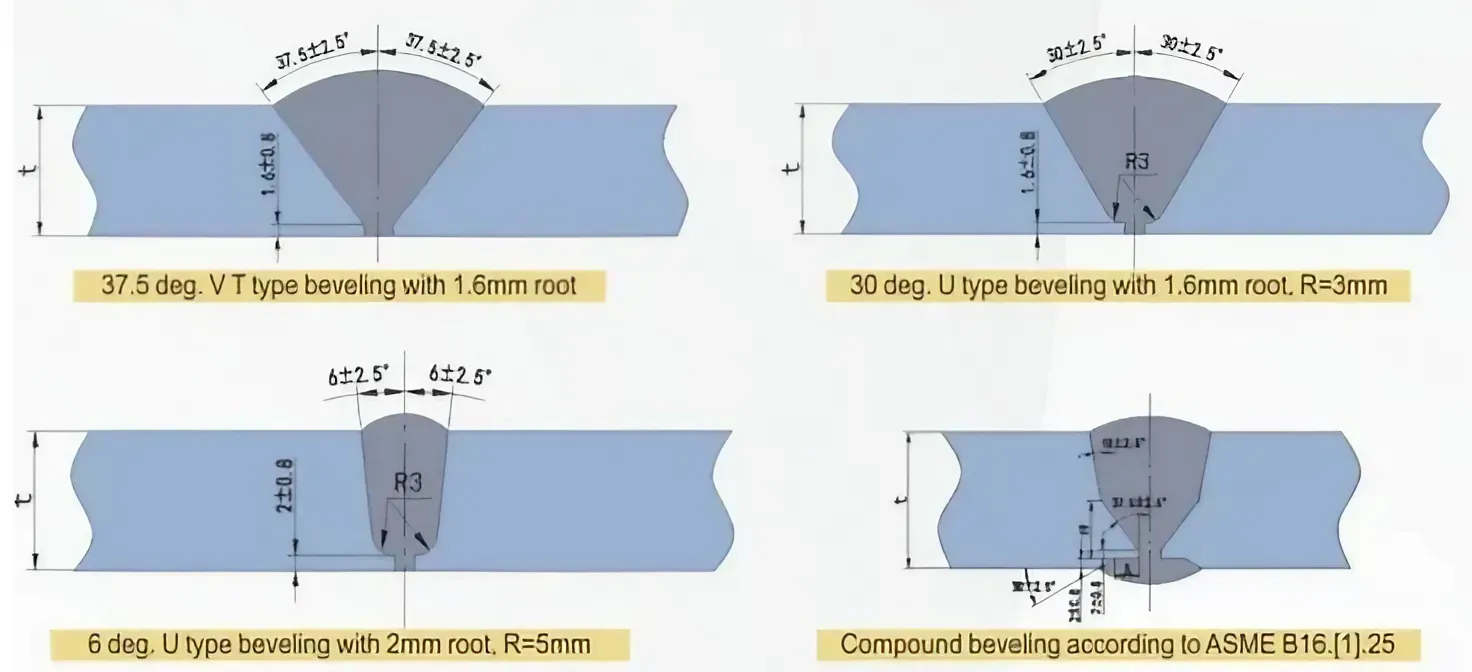

Typical Buttwelding
SSE-850-1 for 600-820 mm Electric Pneumatic Tube End Beveling Machine
-
Automatic Grade Semi-Automatic Country of Origin China Cutting Mode Wire Cutting/Cold Beveling Drive Electric/Pneumatic/METABO Motor Gross Weight 245KG Model SSE-850-1/SSP-850-1/SSM-850-1 Motor Electric Motor Motor Power 2000W/1HP/2400W Net Weight 180KG Packing Dimension 95*88*52cm Rotation Speed 9r/min Wall Thickness Less than 20mm Working Range (I.D) 600-820mm（23.6-32 inches） - Flange Facing Machine for Facing Range 50-3000mm SCE Series 25-1230mm External Mount Flange Facing Machine,Electric Pipe Cutting Beveling Machine SCH Series 25-1630mm External Mount Flange Facing Machine, Hydraulic Pipe Cutting Beveling Machine SCP Series 25-1230mm External Mount Flange Facing Machine,Pneumatic Pipe Cutting Beveling Machine Line Boring Machine for Boring Diameter 55-1600mm SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SISO Series OD Mounted Portable Automatic Plate Chamfer SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
This series of machines is ideal for all types of pipe beveling and pipe end preparation. The compact design makes the machine suitable for any narrow working conditions. The machine is self-centering easy to install and disassemble, highly accurate, and efficient. It can process carbon steel, stainless steel, and alloy pipe with U.V welding seam and also they range convex flange. Ranging from 23.6 to 32 inches I.D. (DN 600-820mm).
Features
Cold Beveling, doesn't affect pipe material
Easy set-up & operation
Self-centering, high precision
Work direction not limited, small work radius
Ratchet handle makes tool feed/back easy
Lightweight and compact design, easy to carry
Electric or pneumatic driven options available
| Name | Unit | Qty |
| Machine | Set | 1 |
| Expanding Block | Set | 7 |
| O° Facing Tool | Pcs | 1 |
| 30° Beveling Tool | Pcs | 1 |
| 37.5° Beveling Tool | Pcs | 1 |
| Allen wrench | Pcs | 2 |
| Hexagon wrench | Pcs | 2 |
| Instruction manual | Pcs | 1 |
Image Gallery
Dimensions
| Model | SSE-850-1 | SSP-850-1 | SSM-850-1 |
| Driven | Electric | Pneumatic | Electric (METABO Motor) |
| Power Supply | 220-240V 1PH 50/60Hz | 2000L/Min@1.0MPa | 220-240V 1PH 50/60Hz |
| Motor Power | 2000W | 1 HP | 2400W |
| Working Range (I.D) | 600-820mm | 600-820mm | 600-820mm |
| Wall Thickness | Less than 20mm | Less than 20mm | Less than 20mm |
| Rotation Speed | 9r/min | 9r/min | 9r/min |
| Net Weight | 180KG | 180KG | 180KG |
| Gross Weight | 245KG | 245KG | 245KG |
| Packing Dimension | 95*88*52cm | 95*88*52cm | 95*88*52cm |
Details
Series Comparison
| Pipe Beveling Machine I Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-30 | 18-28mm | ≤15mm | 50r/min |
| SSE-80 | 28-76mm | ≤15mm | 55r/min |
| SSE-120 | 40-120mm | ≤15mm | 30r/min |
| SSE-159 | 65-159mm | ≤20mm | 35r/min |
| SSE-252-1 | 80-240mm | ≤20mm | 16r/min |
| SSE-352-1 | 150-330mm | ≤20mm | 14r/min |
| SSE-426-1 | 250-426mm | ≤20mm | 12r/min |
| SSE-630-1 | 300-600mm | ≤20mm | 10r/min |
| SSE-850-1 | 600-820mm | ≤20mm | 9r/min |
| Pipe Beveling Machine II Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-252-2 | 80-240mm | ≤75mm | 16r/min |
| SSE-352-2 | 150-330mm | ≤75mm | 14r/min |
| SSE-426-2 | 250-426mm | ≤75mm | 12r/min |
| SSE-630-2 | 300-600mm | ≤75mm | 10r/min |
| SSE-850-2 | 600-820mm | ≤75mm | 9r/min |
