SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer
-
Country of Origin China Model SPB-10 Motor Power 1400W Processing Materials Carbon Steel,Stainless Steel, Tool Bit Qty 4/5 pieces Voltage 220-240V Weight 6.5Kg Other Parameters Working Frequency: 50/60HZ Rotation: 500-1500mm/min Beveling Width: 1-10mm Suitable: K, V, X, Y type groove - Flange Facing Machine for Facing Range 50-3000mm SCE Series 25-1230mm External Mount Flange Facing Machine,Electric Pipe Cutting Beveling Machine SCH Series 25-1630mm External Mount Flange Facing Machine, Hydraulic Pipe Cutting Beveling Machine SCP Series 25-1230mm External Mount Flange Facing Machine,Pneumatic Pipe Cutting Beveling Machine Line Boring Machine for Boring Diameter 55-1600mm SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SISO Series OD Mounted Portable Automatic Plate Chamfer SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
SPB-10 multi-function beveling machine is a kind of hand-operated electric tool. It is suitable for beveling the pre-welding beveling (can be machined into V, x, y beveling). It can beveling the sheet and de-burring the metal material. Its versatility and flexibility can greatly improve the efficiency of the machine and make it an attractive device. The machine is very compact can be operated in complex environments and is difficult to process.

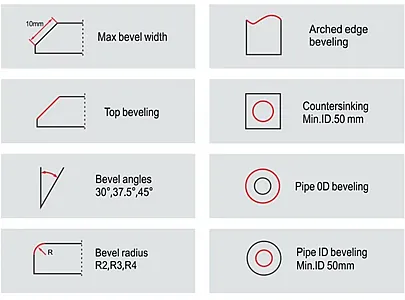

Bevel Type

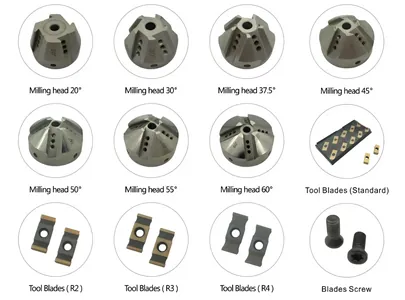

Tool Parts
Multi-function groove machine configuration
1.Calibration clamping system
2.Customized storage box
3.Operating tools
4.Product specification
5.Qualified inspection report
Image Gallery
Dimensions
| Model | SPB-10 |
| Voltage | 220-240V |
| Working Frequency | 50/60HZ |
| Motor Power | 1400W |
| Rotation | 500-1000mm/min |
| Beveling Angle | 30°（Standard） 37.5°45° |
| Beveling Width | 1-10mm |
| Weight | 6.5Kg |
| Tool Bit Qty | 4/5pcs |
Details
Series Comparison
| Model | SPB-15 | SPB-10 |
| Voltage | 220-240V | 220-240V |
| Working Frequency | 50/60HZ | 50/60HZ |
| Motor Power | 2450W | 1400W |
| Rotation | 500-1500mm/min | 500-1000mm/min |
| Beveling Angle | 30°（The standard）20°37.5°45°55°60°（optional） | 30°（Standard） 37.5°45° |
| Beveling Width | 1-15mm(Q235) | 1-10mm |
| Weight | 8.5Kg | 6.5Kg |
| Tool Bit Qty | 4/5pcs | 4/5pcs |
