HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System
-
Acting Way Double Acting Capacity 100-600 ton Country of Origin China Manufacturer SAIVS Minimum Order 1 Piece Model HPC-100|HPC-200|HPC-300|HPC-400|HPC-500|HPC-600 Oil Tank Capacity 120/130 L Stroke 150-250 mm Working Pressure 16/20/63/65 MPa Other Parameters Moving Speed: 6 m/min Power: AC 380V/50Hz - HLA , Double Acting，PLC Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLE, Intelligent quantitative, Synchronous Lifting Systems HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPD, 100-200 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System SCM Series Hydraulic Pusher
Description
Product Line: Industrial Tools
Customizable with special requirement
The equipment adopts a 70MPa high-pressure Hydraulic System with a compact structure and light weight. Mechanical-electrical-hydraulic integration design, flexible operation. Standard with line control handle can realize segmental adjustment, continuous or point operation, also can be equipped with linkage master console to improve work efficiency. Hydraulic lock, lifting valve group, mechanical lock triple security to ensure the safety of equipment and personnel. Hydraulic motor-driven traveling, easy to position, the top 5 ° can be tilted saddle to adapt to uneven working conditions. Modularized design is convenient for maintenance and upgrading.

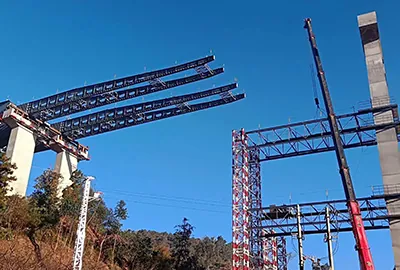

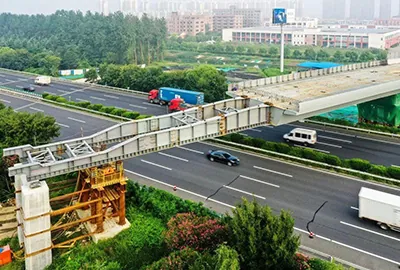

Applications
|
|

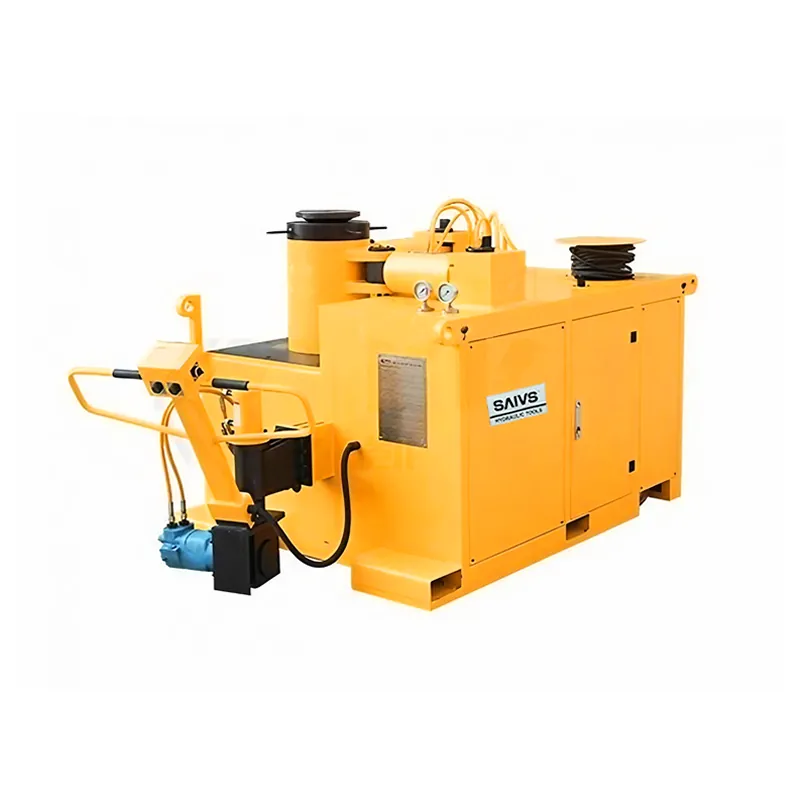

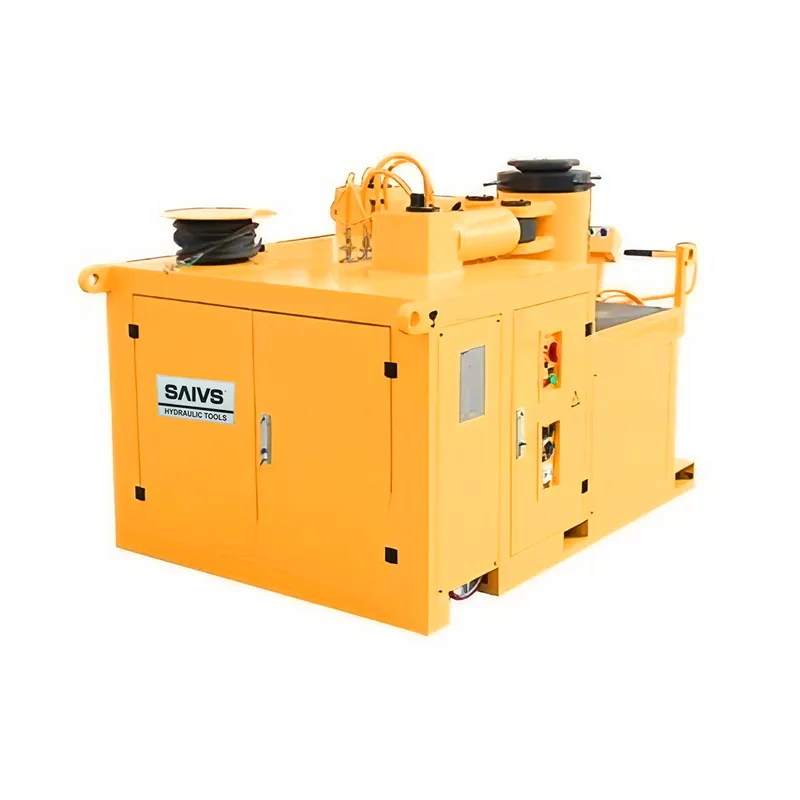

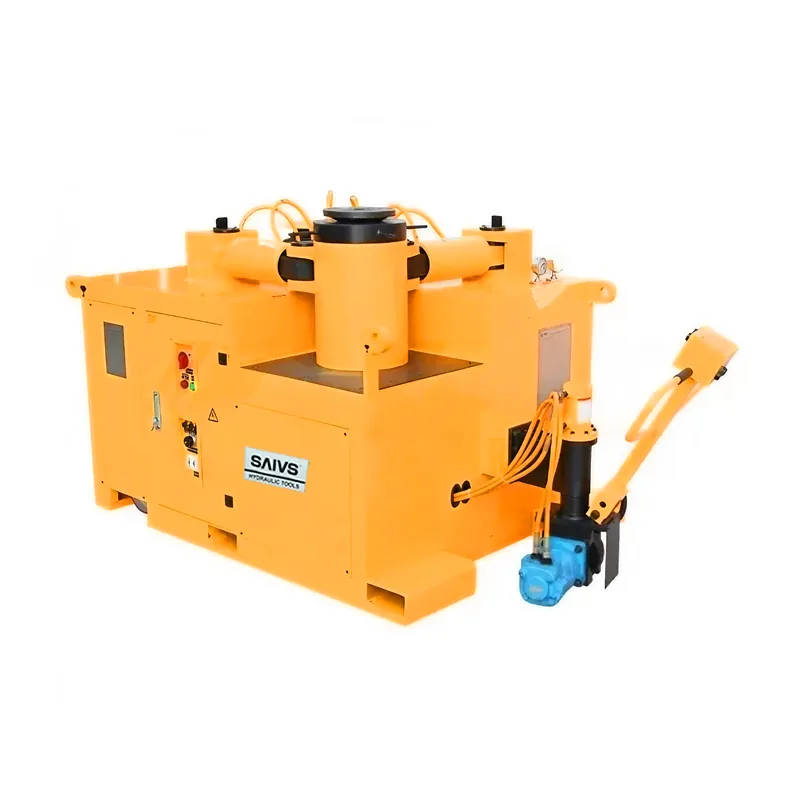

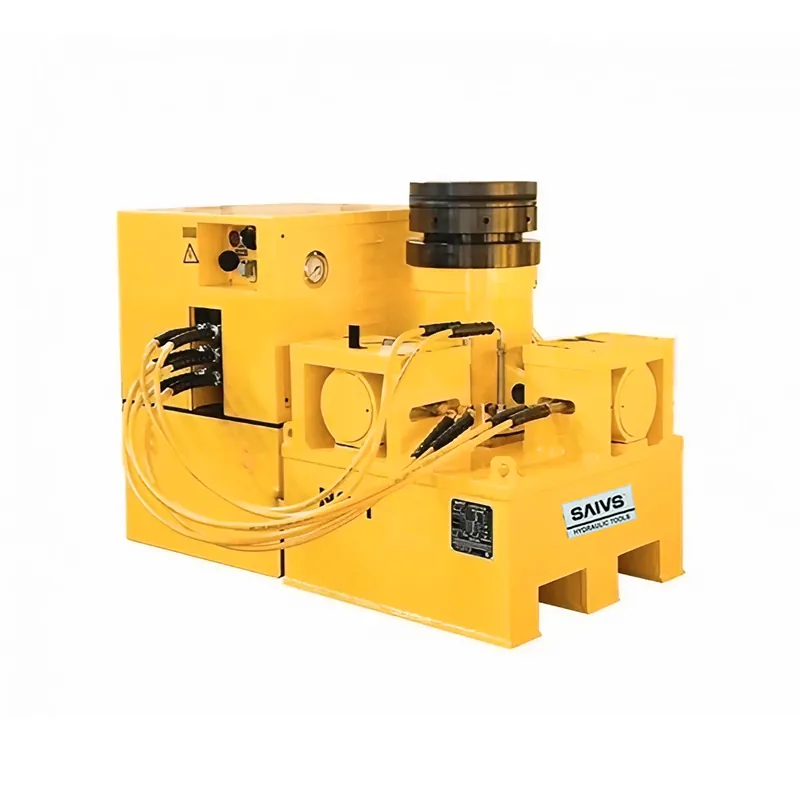

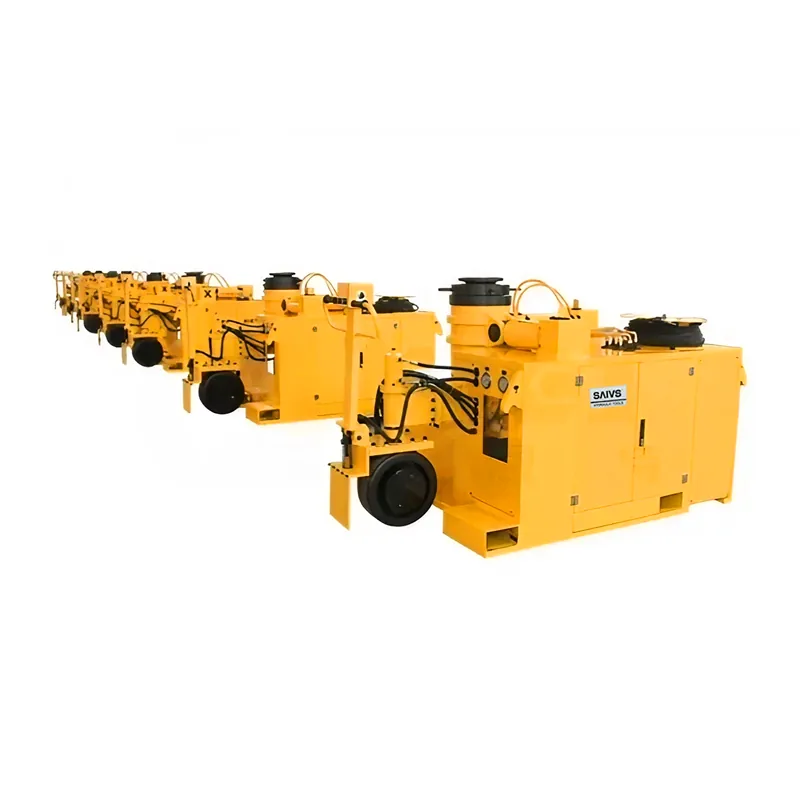

Image Gallery
Details
Series Comparison
| Model | Vertical Direction Z | Horizontal Direction X / Y | Working Pressure (MPa) | Working Pressure (MPa) | Moving Speed (m/min) | Flow(L/min) | Flow(L/min) | Power | Oil Tank Capacity (L) | Dimensions(mm) | Weight (Kg) | |||
| Lifting T | Stroke(mm) | Pushing T | Pulling T | Stroke(mm) | ||||||||||
| HPC-100 | 100 | 250 | 63 | 33.3 | 150 | 63MPa | 20MPa | 6 | 2 | 4 | AC 380V/50Hz | \ | 2220x1240x1300 | \ |
| HPC-200 | 200 | 250 | 63 | 33.3 | 170 | 63MPa | 20MPa | 6 | 2 | 4 | AC 380V/50Hz | 130 | 2220x1250x1300 | 2945 |
| HPC-300 | 300 | 250 | 60 | 60 | 150 | 65MPa | 16MPa | 6 | 2 | 6 | AC 380V/50Hz | 120 | 2180x1500x1540 | 4560 |
| HPC-400 | 400 | 250 | 60 | 60 | 150 | 65MPa | 16MPa | 6 | 2 | 6 | AC 380V/50Hz | 120 | \ | \ |
| HPC-500 | 500 | 250 | 60 | 60 | 150 | 65MPa | 16MPa | 6 | 2 | 6 | AC 380V/50Hz | \ | \ | \ |
| HPC-600 | 600 | 250 | 60 | 60 | 150 | 65MPa | 16MPa | 6 | 2 | 6 | AC 380V/50Hz | \ | \ | \ |
