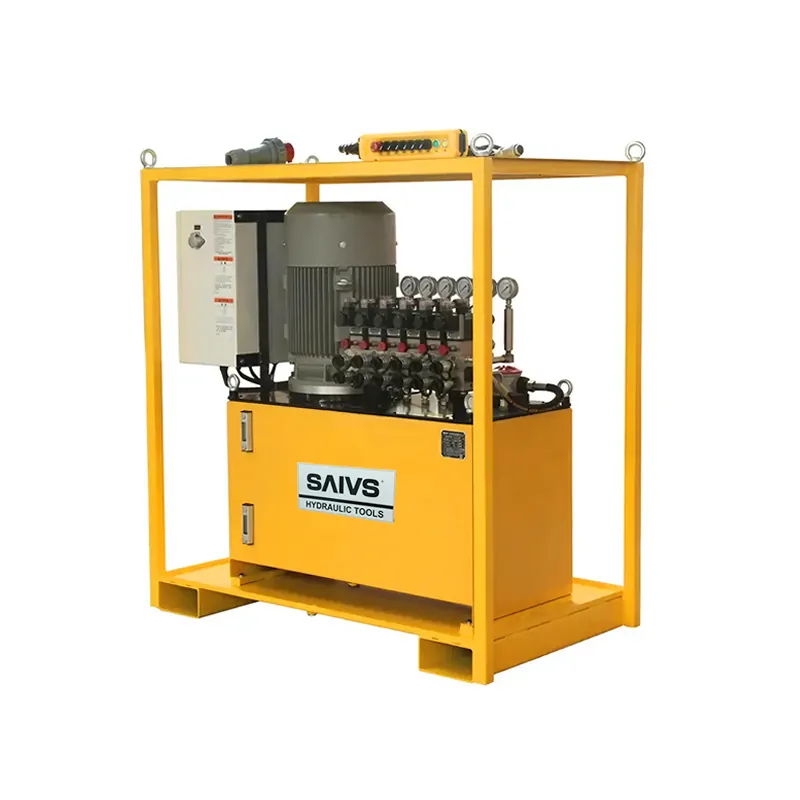

HLE, Intelligent quantitative, Synchronous Lifting Systems
-
Country of Origin China Manufacturer SAIVS Minimum Order 1 Piece Model HLE-213 - HLE-805 Motor Power 5.5-11 KW Weight 235-521 kg Working Pressure 700 bar Other Parameters Export Quantity: 2/4/6/8 Fuel Tank Capacity: 40/150 L Flow rate at rated pressure: 0.45-4.2 L/min Suitable Cylinders: single-acting & double-acting - HLA , Double Acting，PLC Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLE, Intelligent quantitative, Synchronous Lifting Systems HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPD, 100-200 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System SCM Series Hydraulic Pusher
Description
Product Line: Industrial Tools
Customizable with special requirement
This Hydraulic System offers precise synchronization for individual or simultaneous valve control, enabling rising, holding, and falling functions. It can be operated manually or electromagnetically and is compatible with both Single-Acting and Double-Acting cylinders. Each circuit is equipped with an adjustable pressure relief valve for safety. The system achieves accurate synchronization by using a single motor to drive a hydraulic pump with multiple outlets, ensuring equal oil flow to different lines. This minimizes the impact of load size on synchronization, making it ideal for applications requiring precise control and coordinated movement.

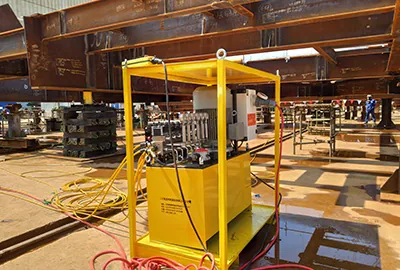

Applications
Image Gallery
Details
Series Comparison
| Model | Export Quantity | Fuel Tank Capacity (L) | Flow （L/min） | Motor Power | Weight (kg) |
| 24V Electromagnetic Valve | (kW) | ||||
| HLE-213 | 2 | 40 | 1.3 | 5.5 | 235 |
| HLE-228 | 2 | 150 | 2.8 | 7.5 | 483 |
| HLE-442 | 4 | 150 | 4.2 | 11 | 521 |
| HLE-404 | 4 | 40 | 0.45 | 5.5 | 235 |
| HLE-409 | 4 | 150 | 0.9 | 5.5 | 470 |
| HLE-414 | 4 | 150 | 1.4 | 5.5 | 483 |
| HLE-421 | 4 | 150 | 2.1 | 7.5 | 521 |
| HLE-604 | 6 | 40 | 0.45 | 5.5 | 235 |
| HLE-805 | 8 | 40 | 0.55 | 7.5 | 275 |
