HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System
-
Acting Way Double Acting Capacity 60-110 ton Country of Origin China Manufacturer SAIVS Minimum Order 1 Piece Model HPA-60 | HPA-120 Stroke 300/600 mm Structure Piston Type Working Pressure 315 bar Other Parameters Applicable Track: P43、QU70、QU80、QU100、QU120 Pushing Speed: 8-20 m/h - HLA , Double Acting，PLC Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLE, Intelligent quantitative, Synchronous Lifting Systems HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPD, 100-200 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System SCM Series Hydraulic Pusher
Description
Product Line: Industrial Tools
Customizable with special requirement

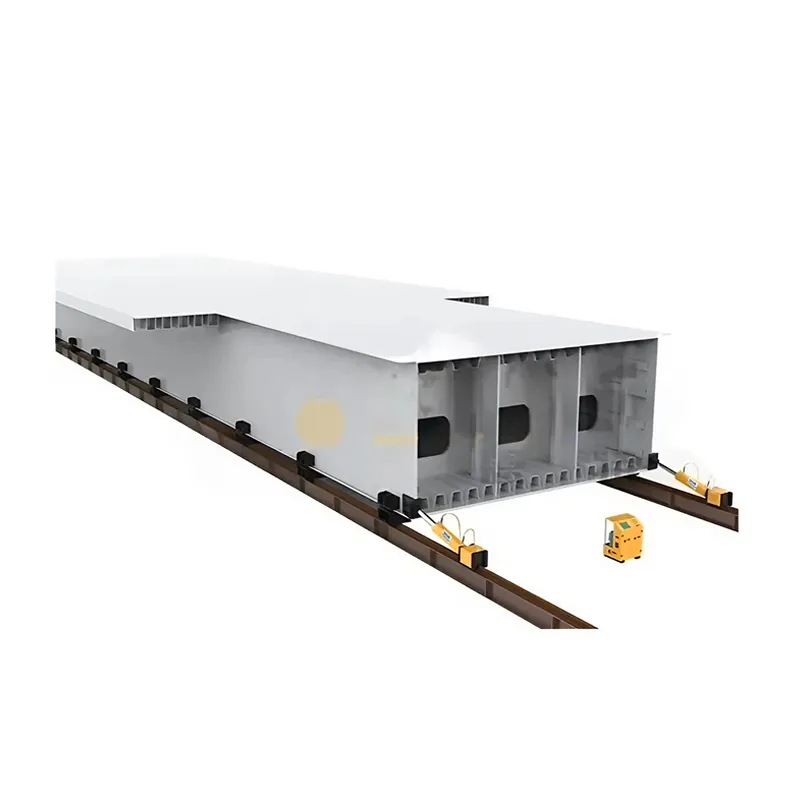

Purpose: Used for synchronous push-slide construction of large components.

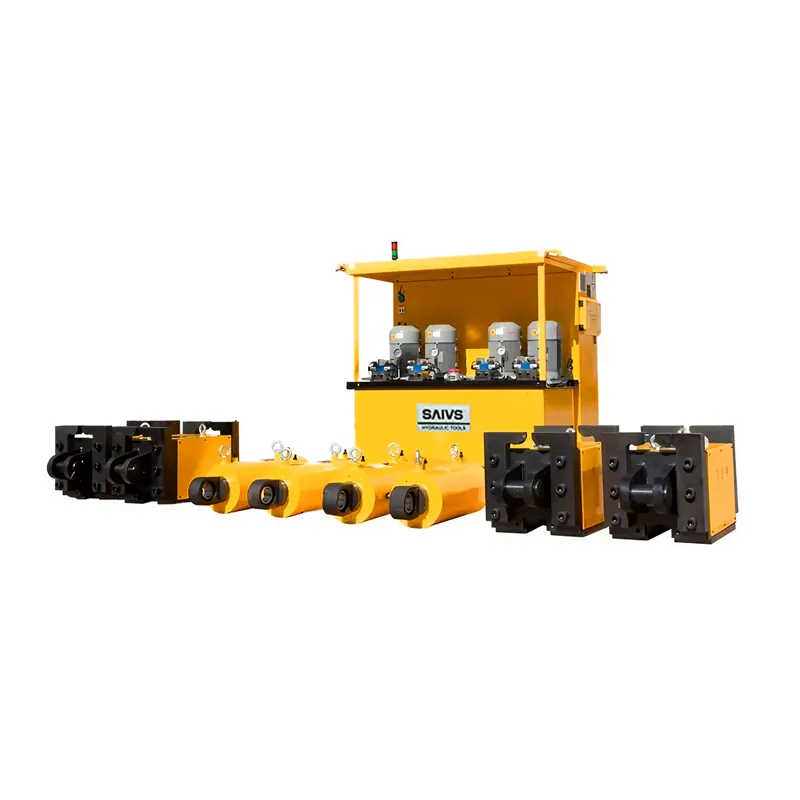

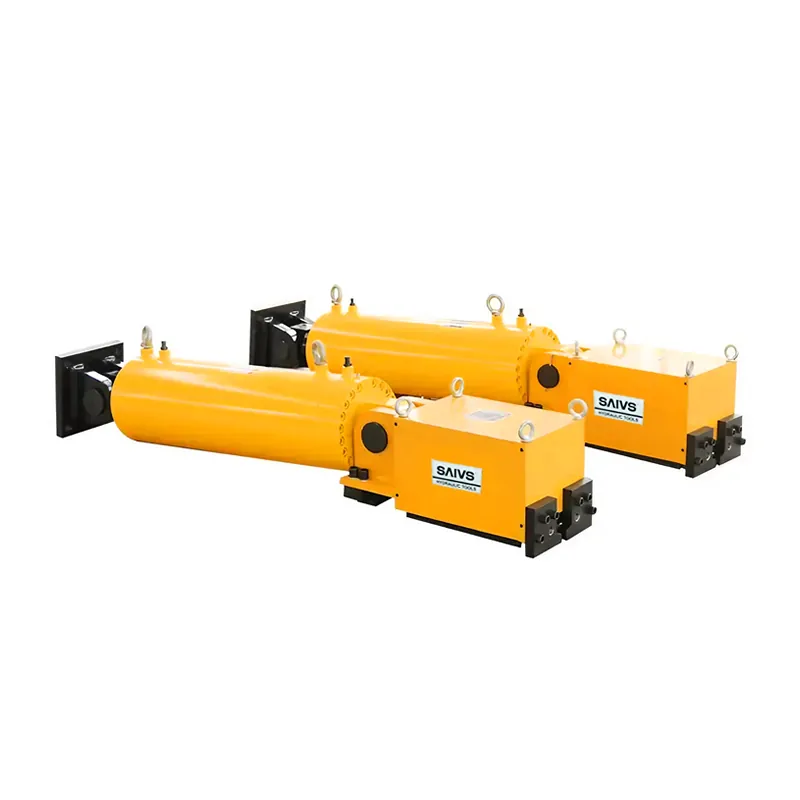

The innovative hydraulic push-slide construction system offers superior control and efficiency compared to traditional methods. It utilizes a hydraulic pushing pump station, cylinder, self-locking crawler, wedge block, and sliding shoe to ensure precise synchronization and stability during the construction of large components. Key advantages include self-locking clamping, high synchronization control, multi-point pushing, adaptability, easy installation, stable operation, and real-time monitoring.

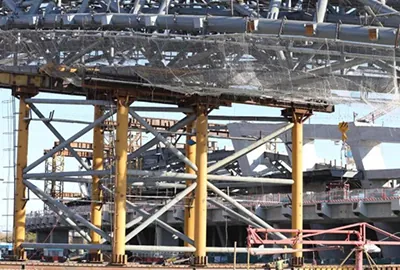

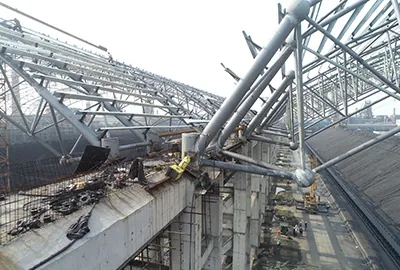

Applications
|
|
Image Gallery
Details
Series Comparison
| Model | Capacity （T） | Working Pressure （bar） | Stroke （mm） | Applicable Track | Pushing Speed（m/h） |
| HPA-60 | 60 | 315 | 300/600 | P43、QU70、QU80、QU100、QU120 | 8-20 |
| HPA-120 | 110 | 315 | 300/600 | P43、QU70、QU80、QU100、QU120 | 8-20 |
