HLA , Double Acting，PLC Synchronous Lifting Systems
-
Acting Way Double Acting Country of Origin China Lifting Points 2-4 Manufacturer SAIVS Minimum Order 1 Piece Model HLA-2A | HLA-2B | HLA-2C | HLA-4A | HLA-4B | HLA-4C Motor Power 1.1-5.5 KW Oil Tank Capacity 130-500 L Structure Piston Type Synchronous Precision ≤±0.2 mm Voltage 380 AC/V Weight 175-545 kg Working Pressure 700 bar - HLA , Double Acting，PLC Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLE, Intelligent quantitative, Synchronous Lifting Systems HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPD, 100-200 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System SCM Series Hydraulic Pusher
Description
Product Line: Industrial Tools
Customizable with special requirement
This Hydraulic System uses a closed-loop automatic control mode for multi-point control, suitable for heavy load weighing, synchronous pushing, lifting, lowering, attitude leveling, and voltage regulation. With frequency conversion speed regulation, it continuously adjusts output flow, ensuring smooth and synchronized cylinder control during lifting and lowering. It supports up to 99 synchronized points, with advanced safety measures, precise load distribution, and traceable lifting data for reliable operation.

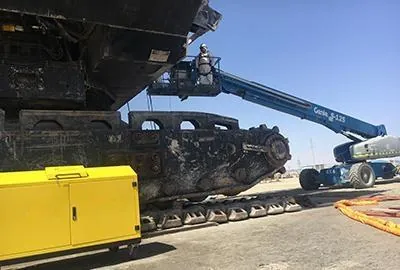

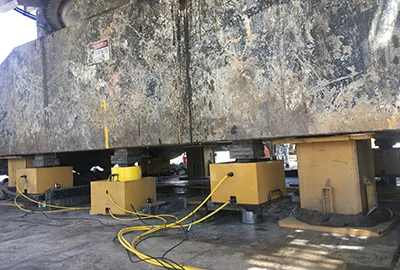

Application
|
|

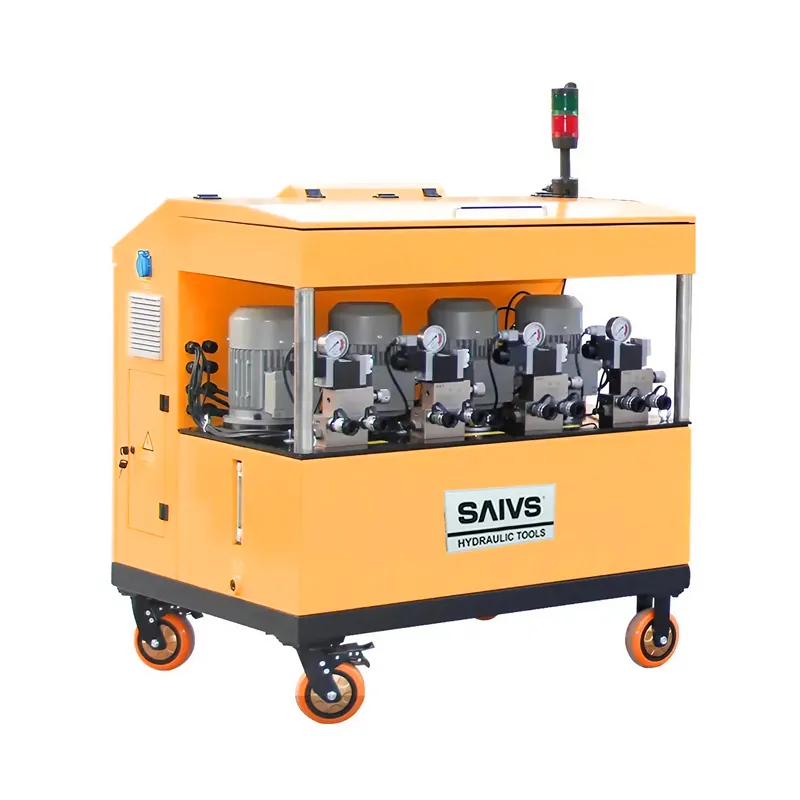

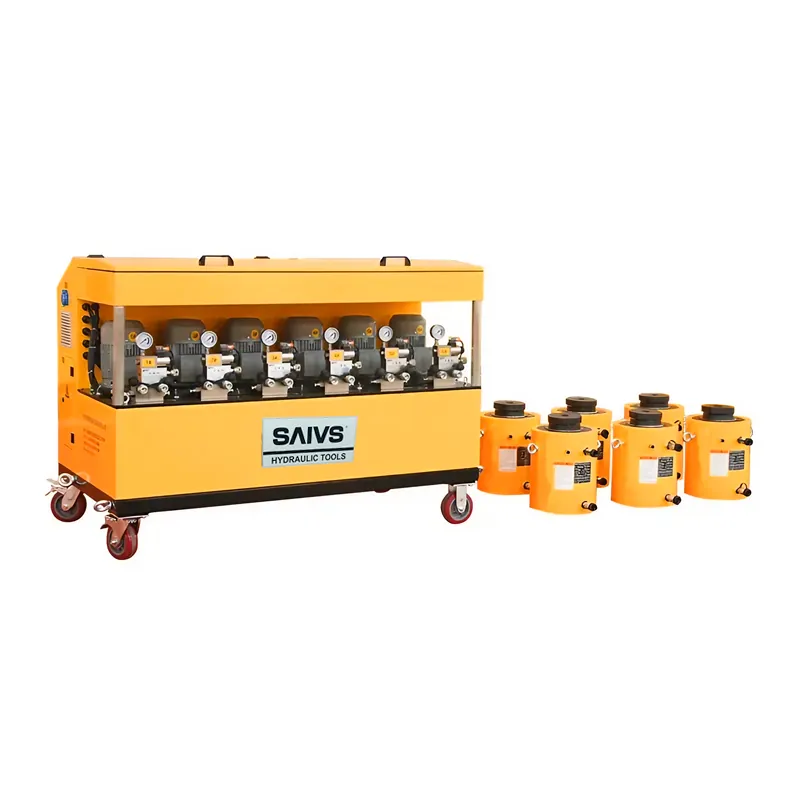

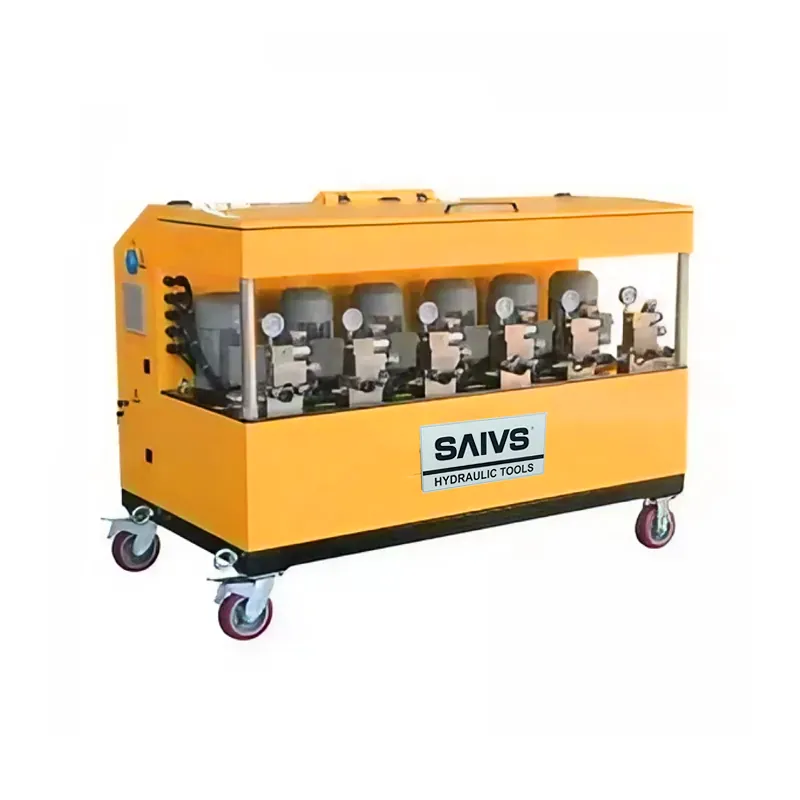

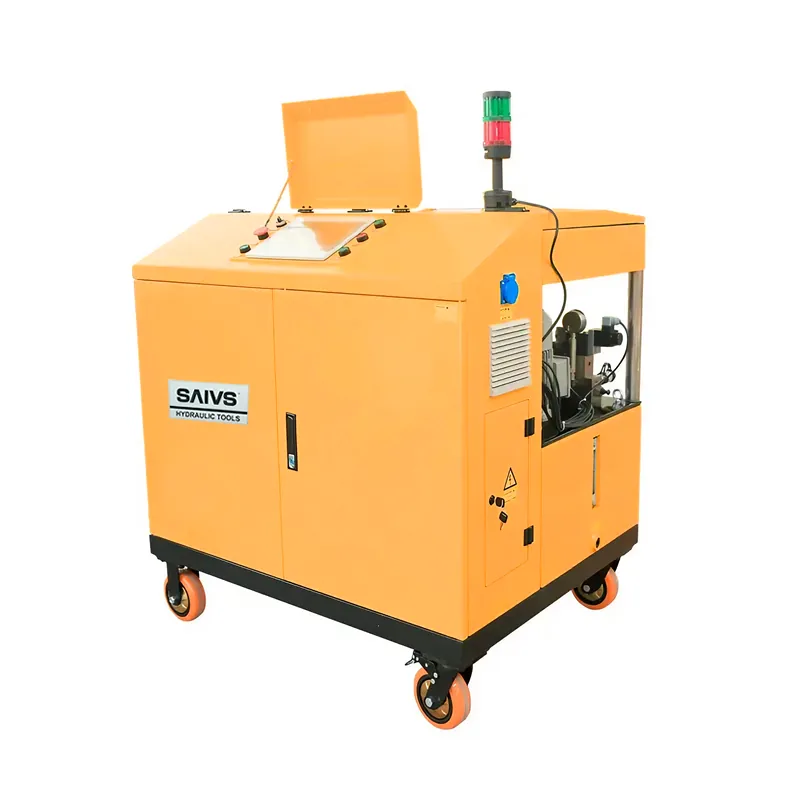

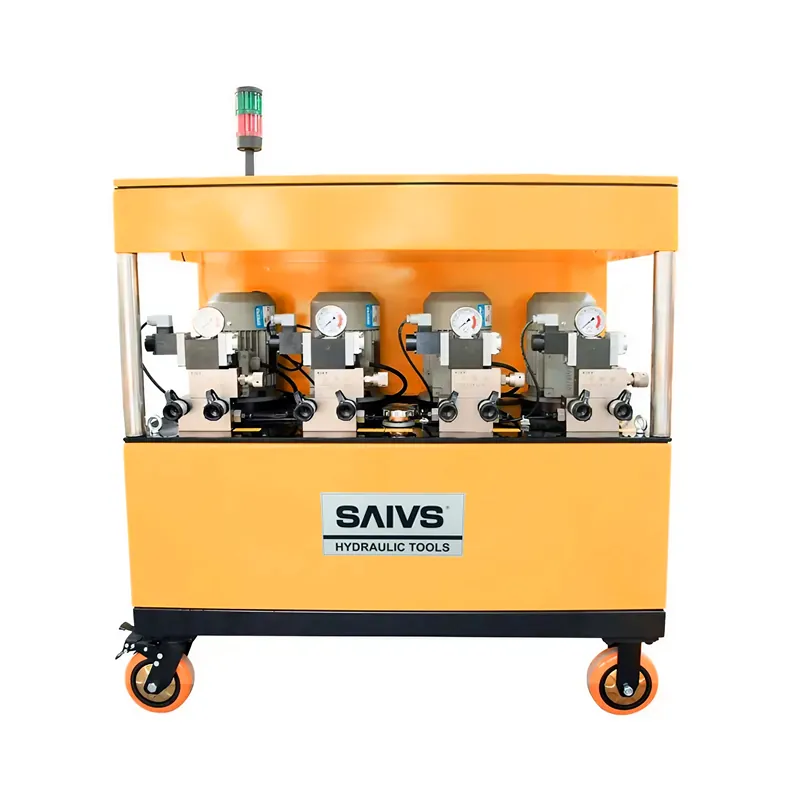

Image Gallery
Details
Series Comparison
| Model | Lifting Points | Synchronous Precision | Motor Power | Voltage | Working Pressure | Flow | Oil Tank Capacity | Dimensions | Weight |
| (mm) | (KW) | (AC/V) | (MPa) | (L) | (L) | (mm) | (kg) | ||
| HLA-2A | 2 | ≤±0.2 | 1.1 | 380 | 70 | 2x1 | 130 | 750x810x1140 | 175 |
| HLA-2B | 2 | ≤±0.2 | 2.2 | 380 | 70 | 2x2 | 130 | 750x810x1140 | 235 |
| HLA-2C | 2 | ≤±0.2 | 5.5 | 380 | 70 | 2x5 | 250 | 950x870x1160 | 295 |
| HLA-4A | 4 | ≤±0.2 | 1.1 | 380 | 70 | 4x1 | 200 | 1100x870x1150 | 345 |
| HLA-4B | 4 | ≤±0.2 | 2.2 | 380 | 70 | 4x2 | 250 | 1200x810x1110 | 425 |
| HLA-4C | 4 | ≤±0.2 | 5.5 | 380 | 70 | 4x5 | 500 | 1100x950x1120 | 545 |
