Stainless Steel Pipe Fittings
-
Application Forestry Marine Food processing Warehousing&distribution Other Parameters Technics: Casting Connection: Welding Head Code: round Fittings material: Stainless Steel SUS201, SUS304, SUS316 Connection type: Male and Female Shape: 90 degree pipe joint, straight joint, T-junction, Cylinder joint, Pressure gage crossover joint,SQH. Thread: NPTF Medium: water, oil and gas Standard: variety of dimensional drawings, according to customized. - HAWE Radial Piston Pump Type R & RG Series VM Series Pump Mounted Directional Control Valves VE Series Pump Mounted Directional Control Valves VM VE Series Pump Mounted Directional Control Valves HAWE Radial Piston Pump Element PE Series HAWE Radial Piston Pump Element MPE 4/5/6/7/8/9 HAWE Directional Seated Valve Type G & WG Series High Pressure Hydraulic Hoses Hydraulic Gauge Adapters Gauge Accessories Quick Couplers
Description
Technics: Casting
Connection: Welding
Head Code: round
Fittings material: Stainless Steel SUS201, SUS304, SUS316
Connection type: Male and Female

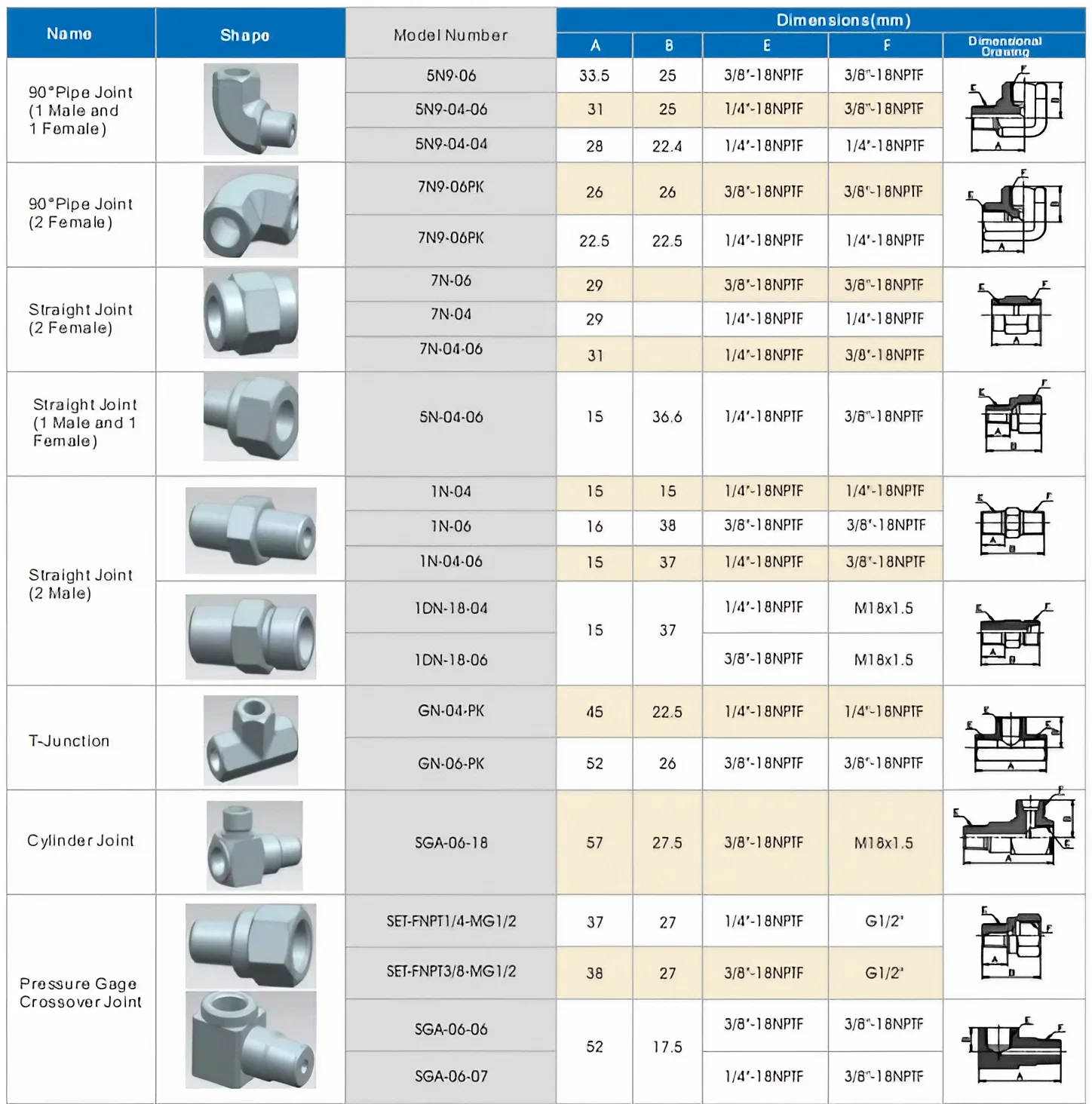

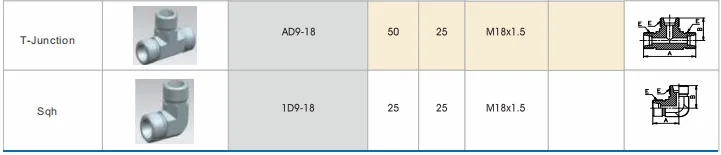

Shape: 90 degree pipe joint, straight joint, T-junction, Cylinder joint, Pressure gage crossover joint,SQH.
Thread: NPTF
Medium: water, oil and gas
Standard: variety of dimensional drawings, according to Customized.
We have hundreds of machines, like full automatic CNC machine, forging machine, drilling machine, bending machine, etc.
We can design and produce all kinds of hydraulic fittings according to your requirements. We set first class service as our philosophy, we will offer you with our best service.
Cautions:
Do not loosen or tighten fittings when system is pressurized.
Make sure that the tubing rests firmly on the shoulder of the port.
Always leave enough straight length of the tubing for the fittings.
Always use an insert for extremely soft plastic tubing.
Material of the metal tubing should be softer than that of the fitting. For example, stainless steel tubing should not be used with brass fittings. When tubing and fittings are made of the same material, the tubing must be fully annealed.
The allowable working pressure of the tube fitting is rated to the maximum working pressure of the corresponding tubing.
Keep the tubing end and surface clean and smooth.
Always use proper thread sealants on tapered pipe threads. Make sure that its working temperature does not exceed that of the sealants.
When assemble the tube fitting, hold the body with a wrench and turn the nut instead of holding the nut.
When install a valve with tube fitting end, hold the valve body with a wrench and turn the nut.
When assemble the fitting to a valve with thread, hold the valve body with a wrench and turn the body of the fitting.
