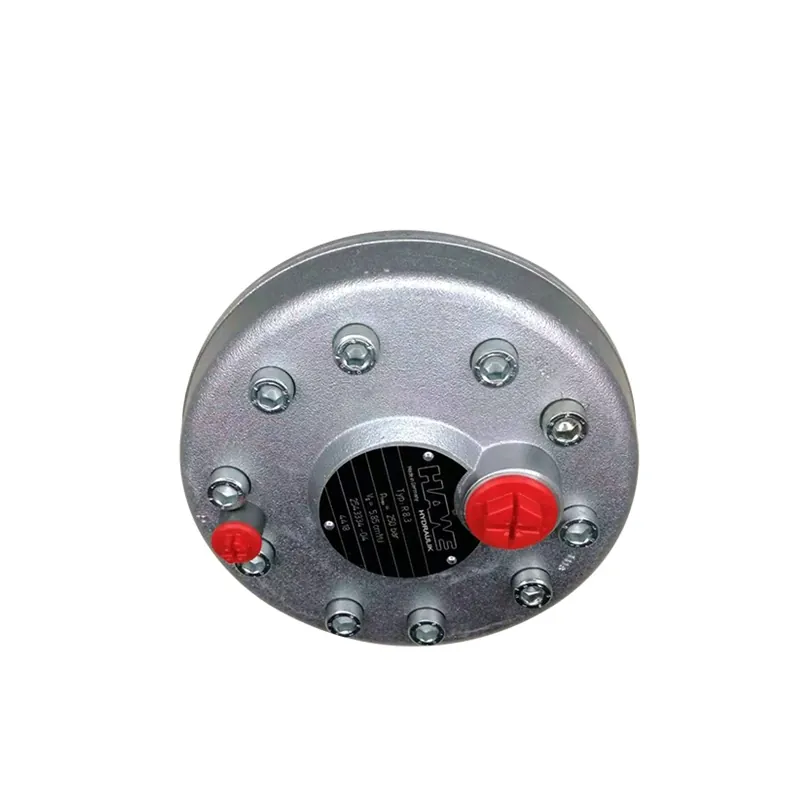

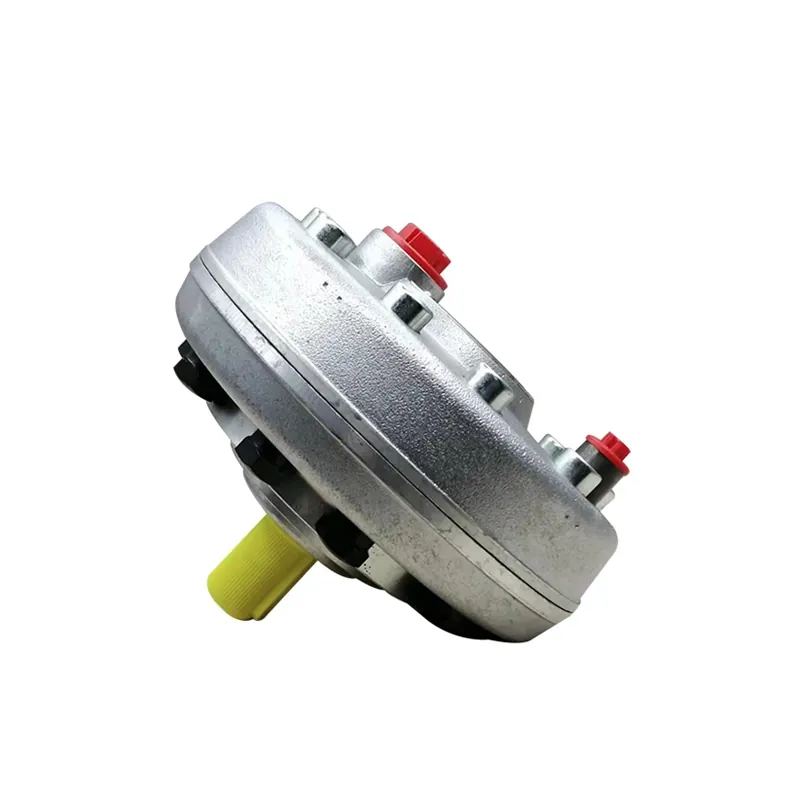

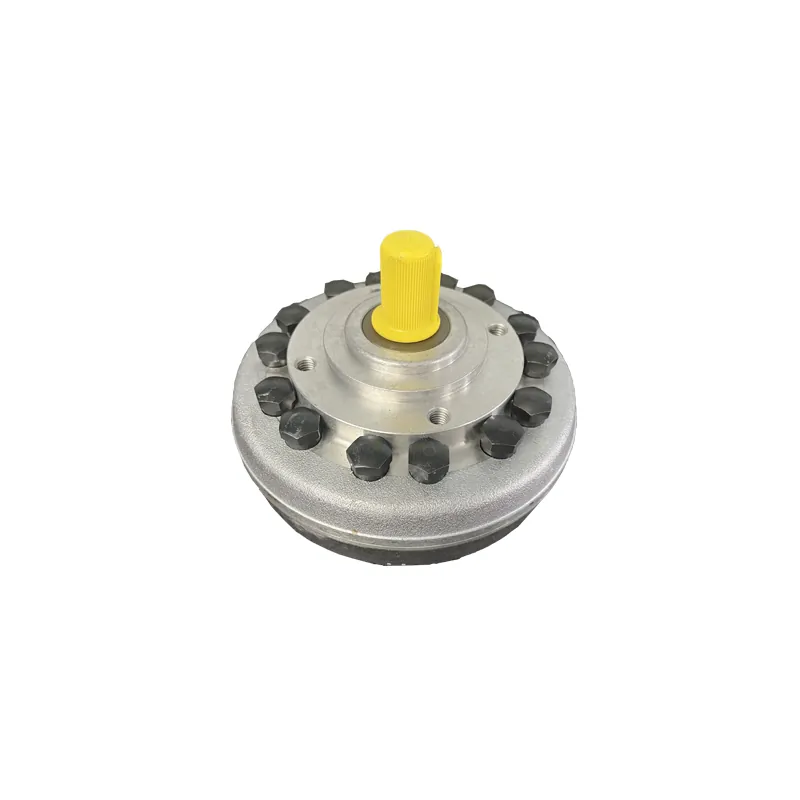

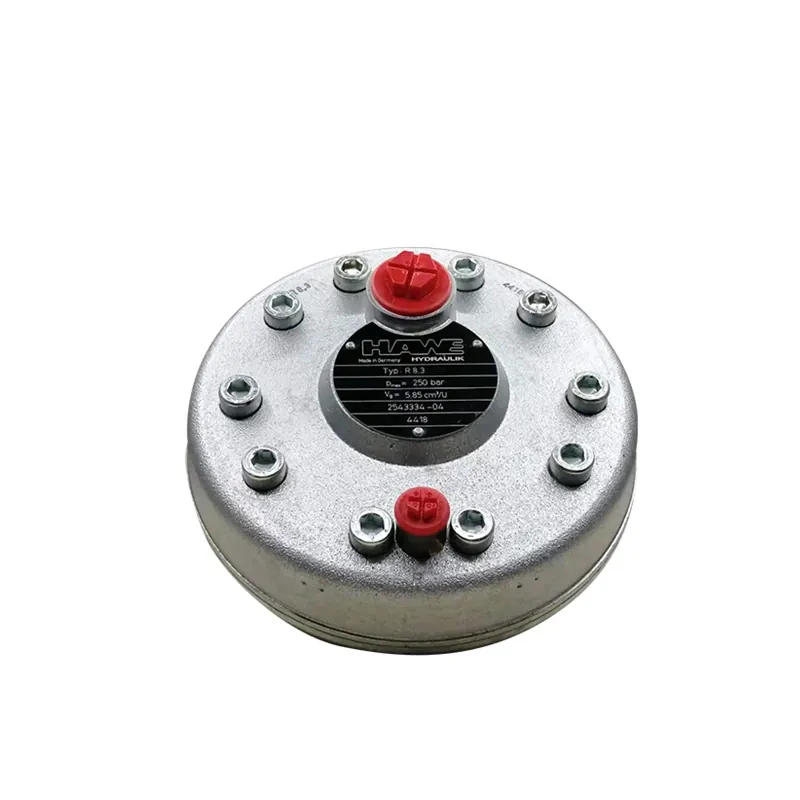

HAWE Radial Piston Pump Type R & RG Series

Features:

Very high efficiency

Can be run with low-viscosity media, Good function even at low viscosity

Fine delivery flow rate gradation

Long service life

Operation not dependent on direction of rotation

Compact dimensions

Fine flow rate gradation

Intended applications:

Industrial hydraulics

Testing machinery

Lubrication systems

hydraulic tools

Press construction

Fixture design

Testing and laboratory equipment

Lubrication systems

Agricultural engineering

Any high-pressure application is basically possible.

Areas in which a constant flow rate is necessary.

The radial piston pump type R consists of valve-controlled pump elements arranged in star form around an eccentric.

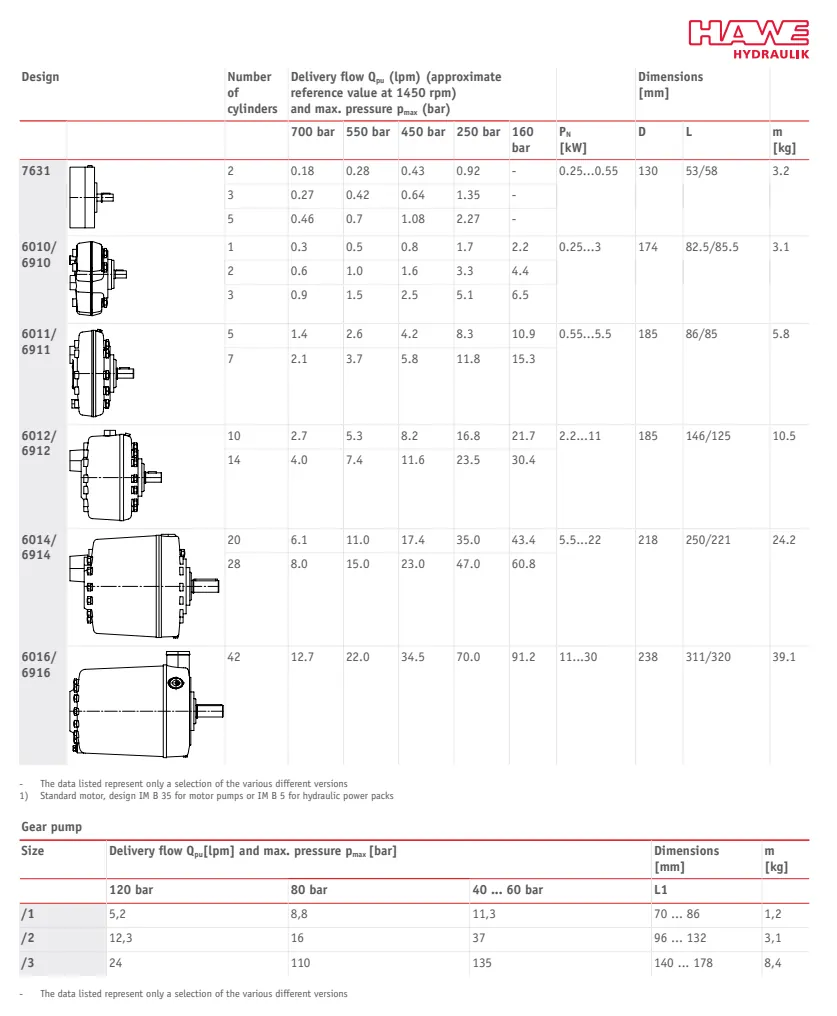

For large flow rates, up to 42 pump elements can be set up in 6 stars stacked one above the other.

The pump elements'output volume is merged to feed one or more pressure outlets.

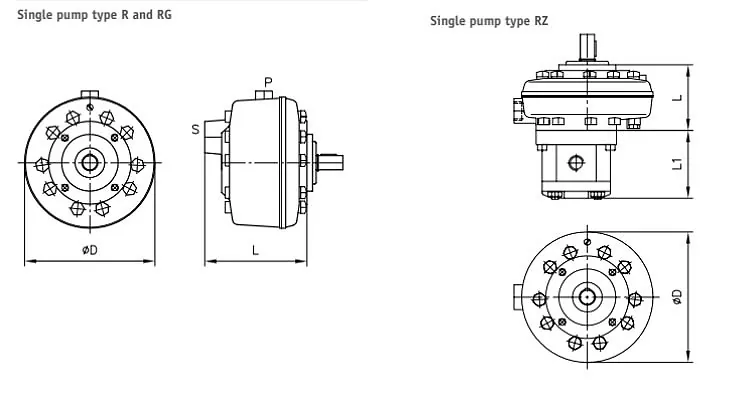

The radial piston pump types R and RG have a closed pump housing. It can consequently be used both as

an external motor pump not installed in an oil tank or as an integrated version installed inside a hydraulic

power pack's tank. The radial piston pump type RG has plain bearings which have an extended service life.

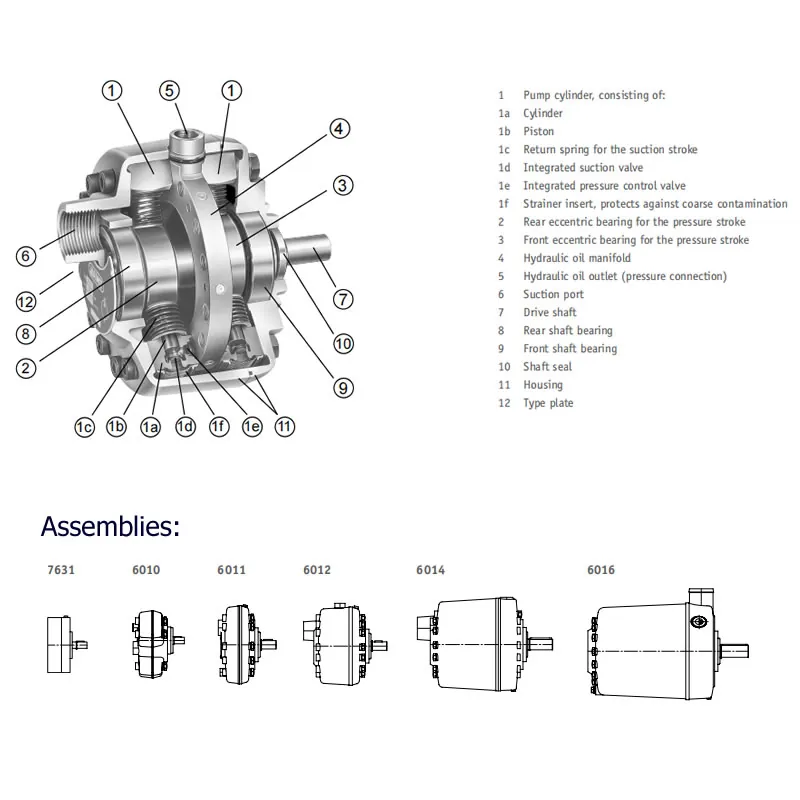

The radial piston pumps are valve-controlled with cylinders in a radial arrangement. The cylinder radials,

arranged in one, two or moresuperimposed layers (rows), are driven by bearings 8 tted eccentrically on the

drive shaft (piston pressure stroke), and reset by a spring (piston suction stroke).

The delivery flows of the individual cylinders are brought together in collecting

plates feeding a joint pressureconnection (P). The housing shells are load-bearing elements

supporting the cylinders and shaft bearings. The pumps are largely statically and dynamically balanced,

resulting in smooth running. With the exception of the 1 and 2-cylinder pumps, an uneven number

of pistons is used per cylinder radial, so that the pulsation of the delivery flow is minimised from three cylinders upwards.
