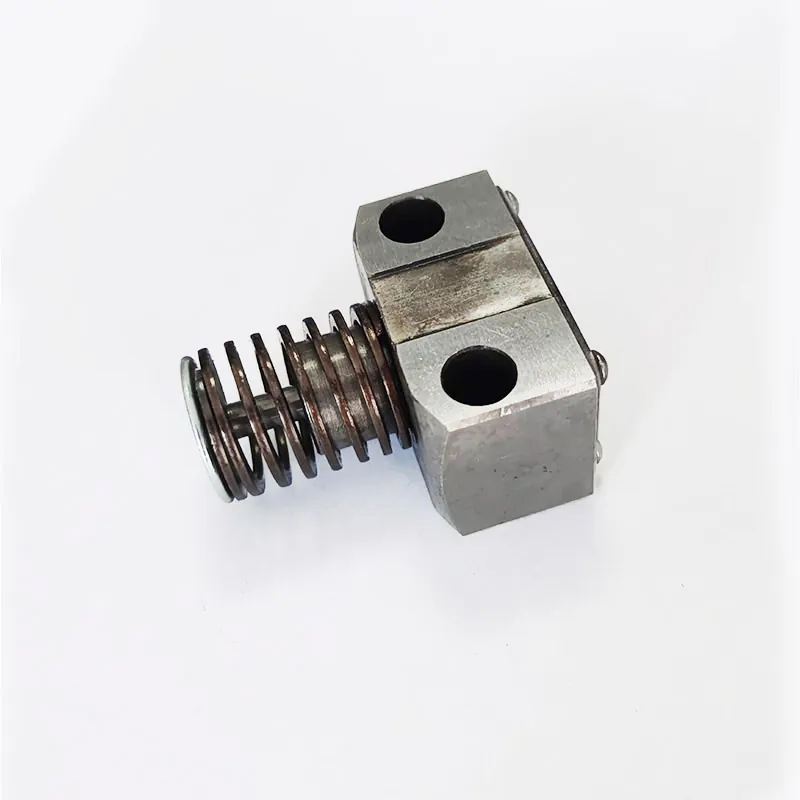

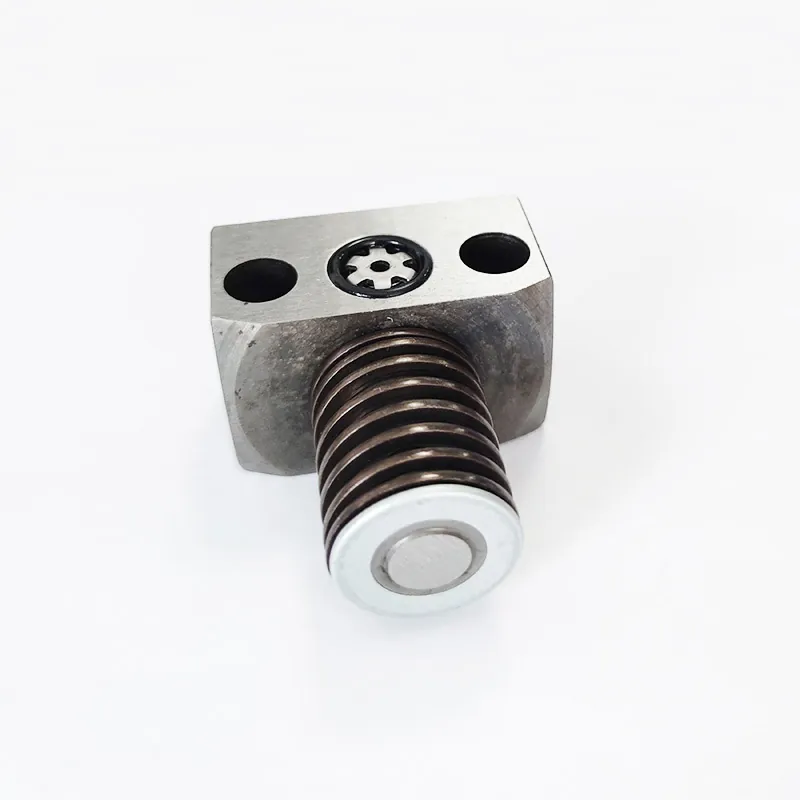

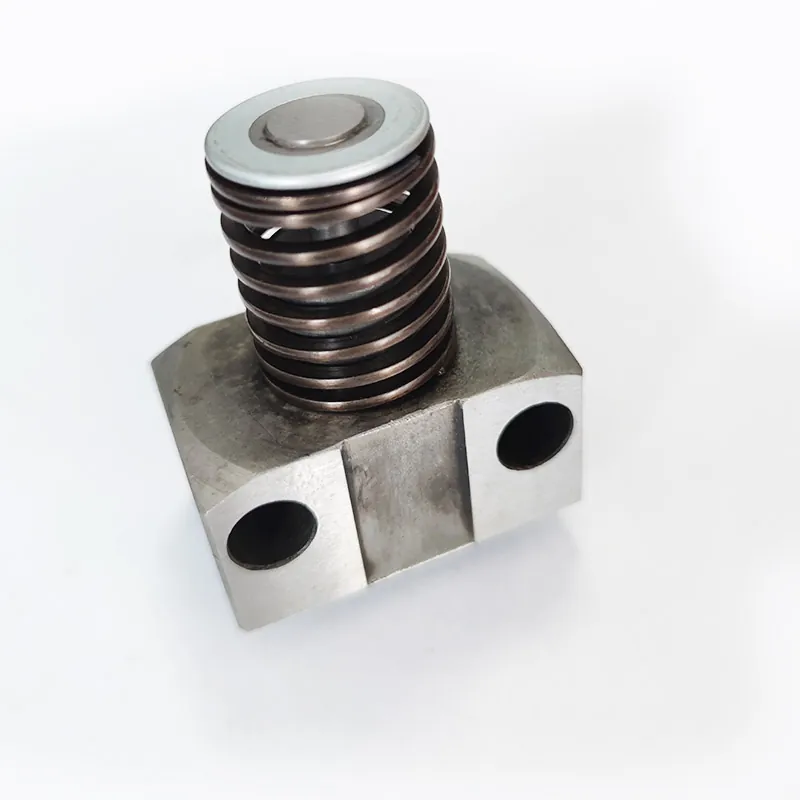

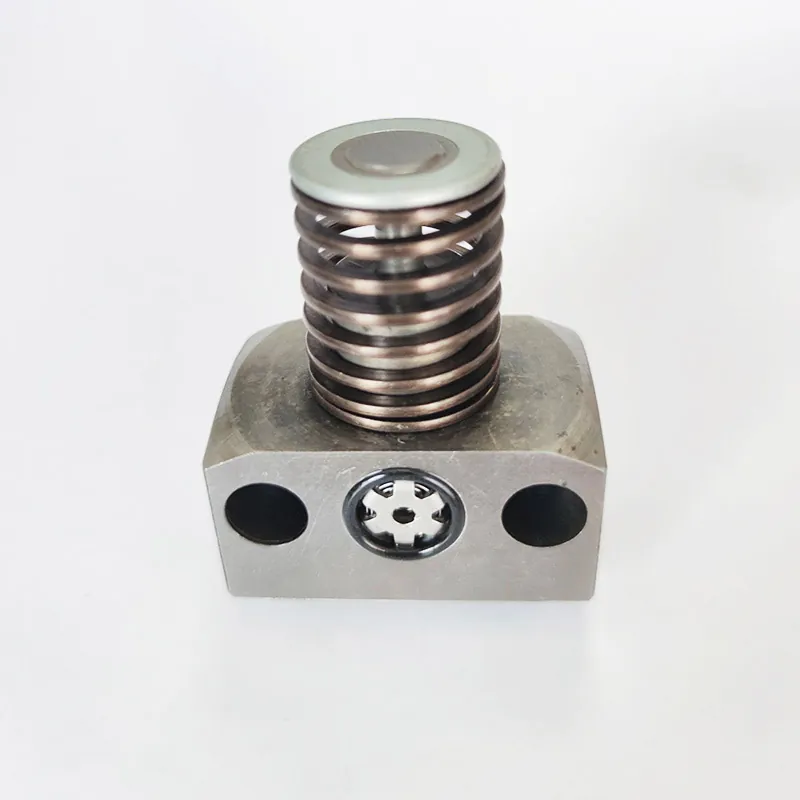

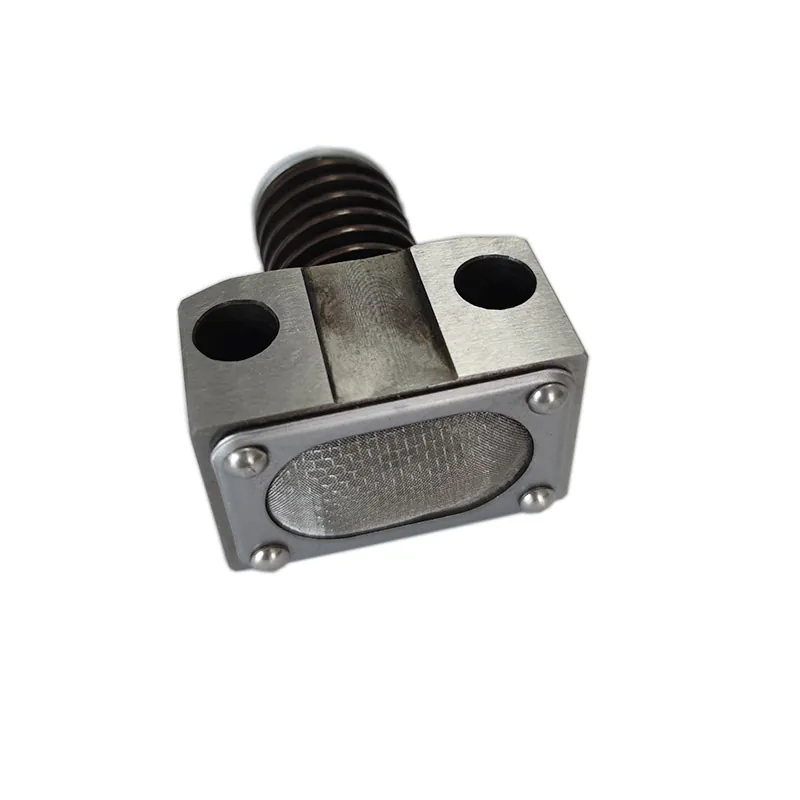

HAWE Radial Piston Pump Element PE Series

Application	Shipping & logistics Material handling Forestry Marine
Brand Name	HAWE
Dimension(LWH)	303025
Flow rate Qmax	2.2 L/min (1450 rpm), 4.2 L/min (2850 rpm)
Geometric displacement Vg max	1.52 cm³/rev
Model	PE6\| PE7\| PE8\| PE10\| PE12\| PE13\| PE14\| PE15\| PE16
Other Parameters	Operating pressure max: 700 bar/10000 psi Description: Pump piston plunger Design: Valve-controlled pump piston plunger Installation position: As desired

HAWE Radial Piston Pump Type R & RG Series VM Series Pump Mounted Directional Control Valves VE Series Pump Mounted Directional Control Valves VM VE Series Pump Mounted Directional Control Valves HAWE Radial Piston Pump Element PE Series HAWE Radial Piston Pump Element MPE 4/5/6/7/8/9 HAWE Directional Seated Valve Type G & WG Series High Pressure Hydraulic Hoses Hydraulic Gauge Adapters Gauge Accessories Quick Couplers

Description

Feature:

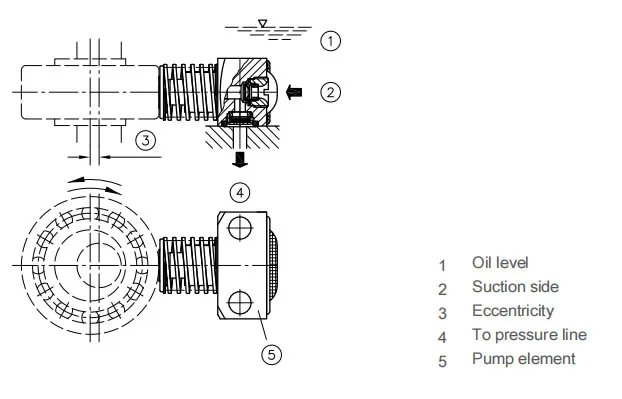

The suction valve inlet of the pump element must be entirely below

the oil level to prevent any air being drawn in.

The piston and roller bearings must be fully immersed under the oil level

during continuous operation to ensure continuous lubrication.

Material: Steel; hardened, ground functional inner parts

Temperatures Ambient: approx. -40 - +80°C, Fluid: -25 - +80°C, Note the viscosity range!

Start temperature: down to -40°C is permissible (observe start viscosities!),

as long as the steady-state temperature is at least 20K higher during subsequent operation.

BioLogically degradable pressure fluids: Observe manufacturer's specifications.

By consideration of the compatibility with seal material not over +70°C.

Operating pressure : 700 bar

efficiency : + 0.95

stroke frequency: min. 200 rpm, max. 2850 rpm

Below min. stroke frequency: volumetric efficiency will drop swiftly.

Above max. stroke frequency: suction problems may occur (with small cylinder diameters)

Weight:

PE 6 - 16: 300 g

Drive type: motor via rotating shaft

Shaft rotation direction: any (direction of delivery remains unchanged)

A roller bearing is mounted eccentrically on the shaft. The outer race of the bearing acts on the back of the pump element.

This generates the lifting movement in conjunction with the return spring.

The flow rate is controlled by automatic suction and pressure control valves in the housing of the pump piston plunger.

HAWE Radial Piston Pump Element PE Series,HAWE Radial Piston Pump Element PE 8,

HAWE Radial Piston Pump Element pe replacement.

PE Pump Piston Plunger8.webp

Standard version

Type

Ød

g ±0.1

O-ring

PE 6 - 16

31.7 ±0.02

22.9

3.8 ±0.05

18.1

30.2

12.5

M10-8.8
(48 Nm)

12.37x2.62

Type	Piston	Geometric displacement Vg (cm3/rev)	Flow rate Q (lpm)		Piston force in stroke direction per 1 bar (N)	Power required per 100 bar (kW)		pmax (bar)


			1450 rpm	2850 rpm		1450 rpm	2850 rpm
PE	6	0.21	0.3	0.6	2.83	0.055 k	0.12 k	700
	7	0.29	0.4	0.8	3.90	0.07 k	0.16 k	700
	8	0.38	0.5	1.0	5.03	0.09 k	0.18 k	700
	10	0.59	0.8	1.6	7.85	0.15 k	0.29 k	560
	12	0.84	1.2	2.4	11.3	0.22 k	0.44 k	390
	13	1.0	1.45	2.8	13.3	0.26 k	0.52 k	330
	14	1.15	1.7	3.3	15.4	0.31 k	0.63 k	290
	15	1.32	1.9	3.7	17.7	0.35 k	0.70 k	250
	16	1.52	2.2	4.2	20.0	0.43 k	0.84 k	220
