R01 Series,Pump Core Pump Head
-
Application Chemical processing Automotive repair maintenance Pharmaceuticals Mining Displacement 0.42-5.49cm³ /rev Max. Pressure 700bar Max. Speed 2000rpm R01 0.0256-0.3350 in3 /rev R02 0.108-0.117 in3 / rev R04 0.2093-0.2392 in3 / rev R05 0.3710-0.4058 in3 / rev R06 0.1117-0.1166 in3 / rev - HAWE Radial Piston Pump Type R & RG Series VM Series Pump Mounted Directional Control Valves VE Series Pump Mounted Directional Control Valves VM VE Series Pump Mounted Directional Control Valves HAWE Radial Piston Pump Element PE Series HAWE Radial Piston Pump Element MPE 4/5/6/7/8/9 HAWE Directional Seated Valve Type G & WG Series High Pressure Hydraulic Hoses Hydraulic Gauge Adapters Gauge Accessories Quick Couplers
Description

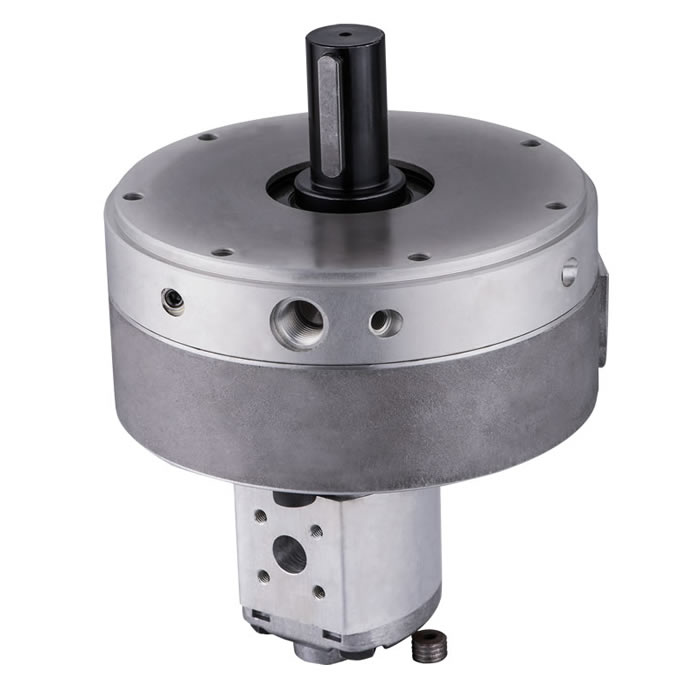

R01 Series Gear pump head
The pump head is equipped with safety valve, high and low pressure switching valve.
This Plunger Pump Head is new surplus, in excellent condition,
it includes a hard steel pin but could be swapped with another type based on your requirements.

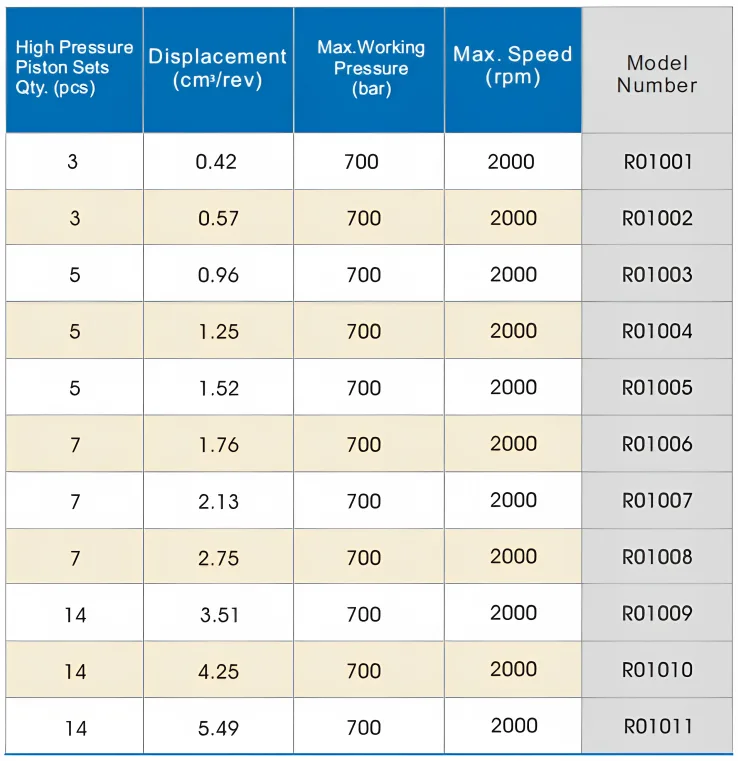

Displacement: 0.42-5.49cm³ /rev
Max.Pressure: 700bar
Max.Speed: 2000rpm
Features
The pump head is designed with three-stage plunger pump structure.
The pump head is equipped with safety valve, high and low pressure switching valve and high and low pressure switching valve.
