SPS7-0.7 Two Speed,Single-acting Hydraulic Steel Hand Pump
-
Brand Name Replacement Enerpac's SPS7-0.7 Country of Origin China Manufacturer SAIVS Max.Operating Pressure 700 bar Minimum Order 1Piece Model SPS7-0.7 Pressure Rating 1st Stage 25bar/348.1 psi Pressure Rating 2nd Stage 700bar/10000 psi Pump Type Double Speed Usable Oil Capacity 655 cm³ Used with Cylinder Single-Acting Weight 5.9 kg Other Parameters Oil Displacement Per Stroke 1st Stage: 15 cm³ Oil Displacement Per Stroke 2nd Stage: 2.62 cm³ - Air Driven Hydraulic Torque Wrench Pump SPA Series Ultra High Pressure Electric Pumps - PTE Series 700 bar/10000PSI Electric Hydraulic Pump HP1000DMIN, Two Speed 67.7 in³ Usable Oil,Hydraulic Sealed Hand Pump P391, Single Speed, Lightweight Hydraulic Hand Pump P142, Two Speed, Lightweight Hydraulic Hand Pump P80 Two Speed,Single-acting Hydraulic Steel Hand Pump P84 Two Speed, Hydraulic Steel Hand Pump,Double-Acting Cylinders PAT Series Foot Air Hydraulic Pumps JEA2-9,Gasoline Engine Hydraulics Wrench Pump
Description
Model:SPS7-0.7
Product Line: Industrial Tools
Customizable with special requirement
With a choice of oil capacities up to Reservoir Capacity:655-7423cm
Flow at Rated Pressure: 2.46-4.75cm'/stroke
Maximum Operating Pressure:700 bar / 10000 Psi
you will find Steel Hand Pumps that can handle multiple cylinder hook-ups,
including models to suit either Single-Acting and Double-Acting Cylinders.
1. Durable Stainless Steel structure..
2. Two-speed operation, build-in automatic pressure valve to provide greater flow at low pressure,
saving operation time and increasing the work efficiency.
3. Build-in safety valve provides dual-protection of safety.
4. Pressure regulating valve can readjust working pressure.
5. The unique press rod mechanism for easy operating.
SAIVS's Hydraulic Hand Pump is designed for portability, durability and easy-of-use.
A large selection of hydraulic hand pumps makes it easy to find the most effective compact High Pressure Pump.
The manual hand is also equipped with numerous safety features to provide dependable Performance, while maintaining worker safety.

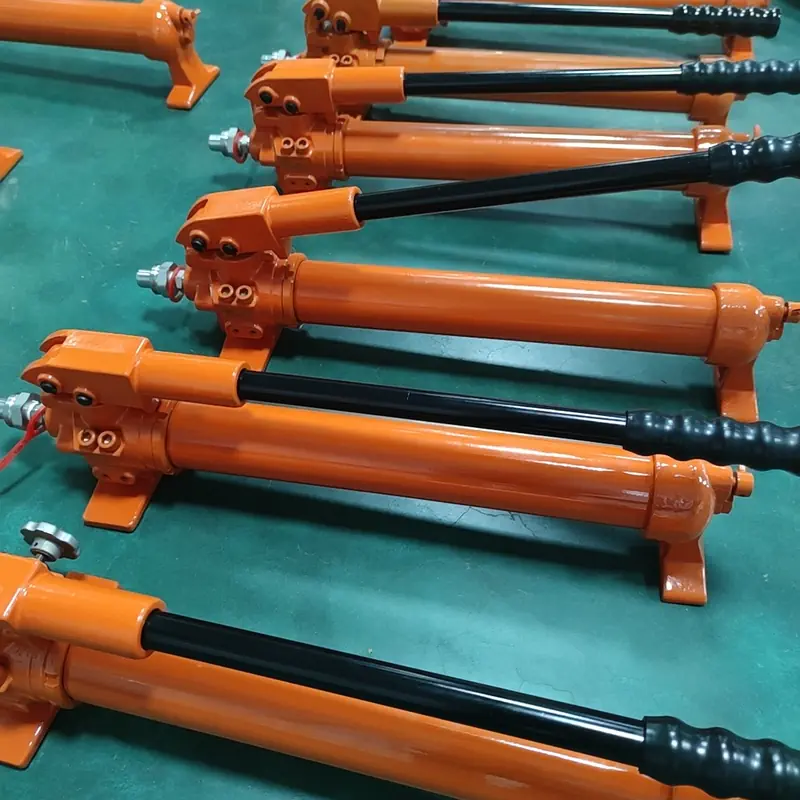

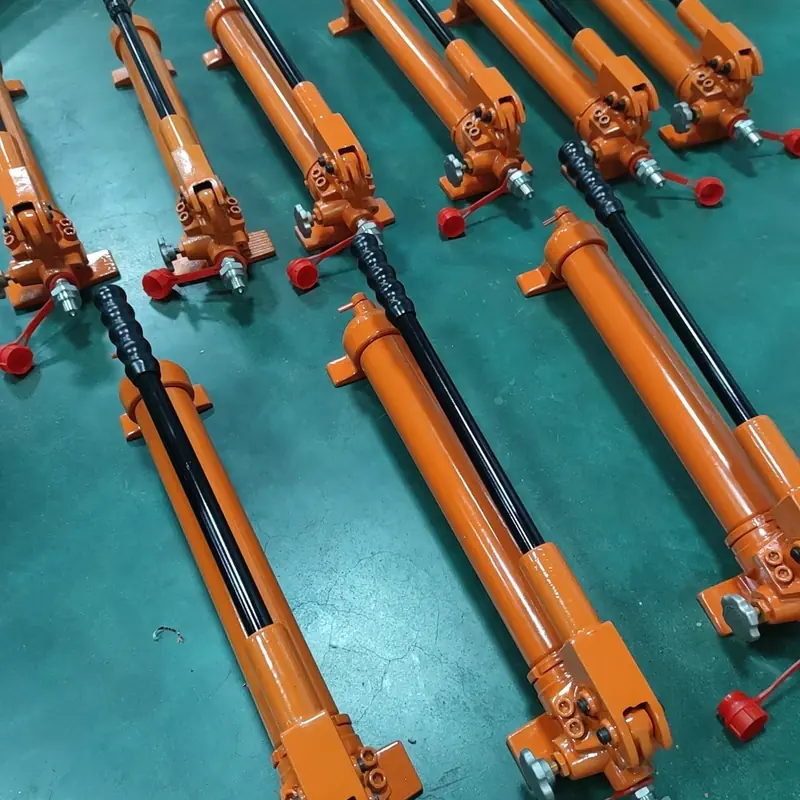

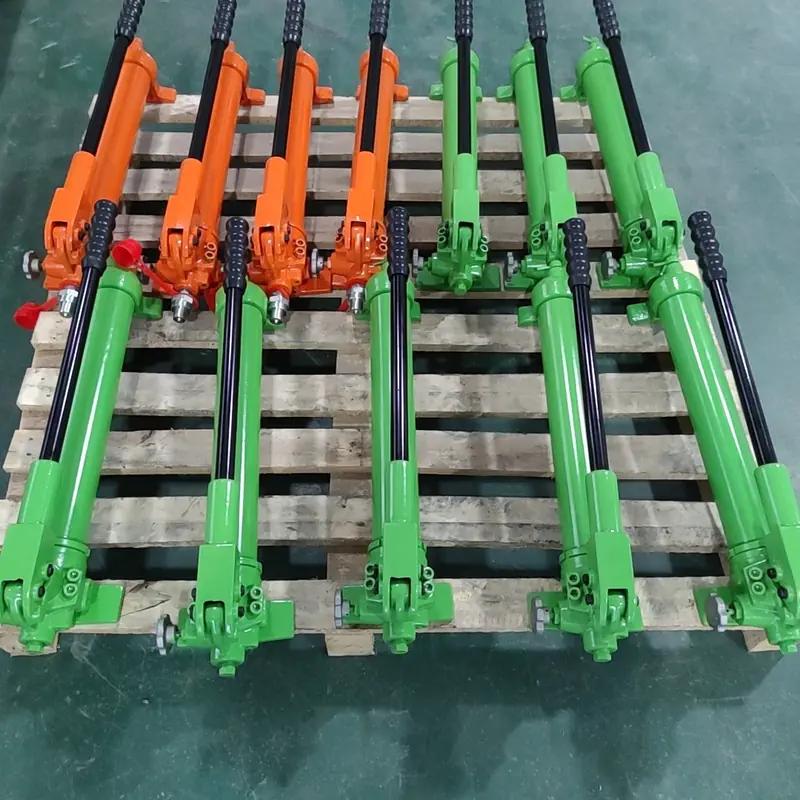

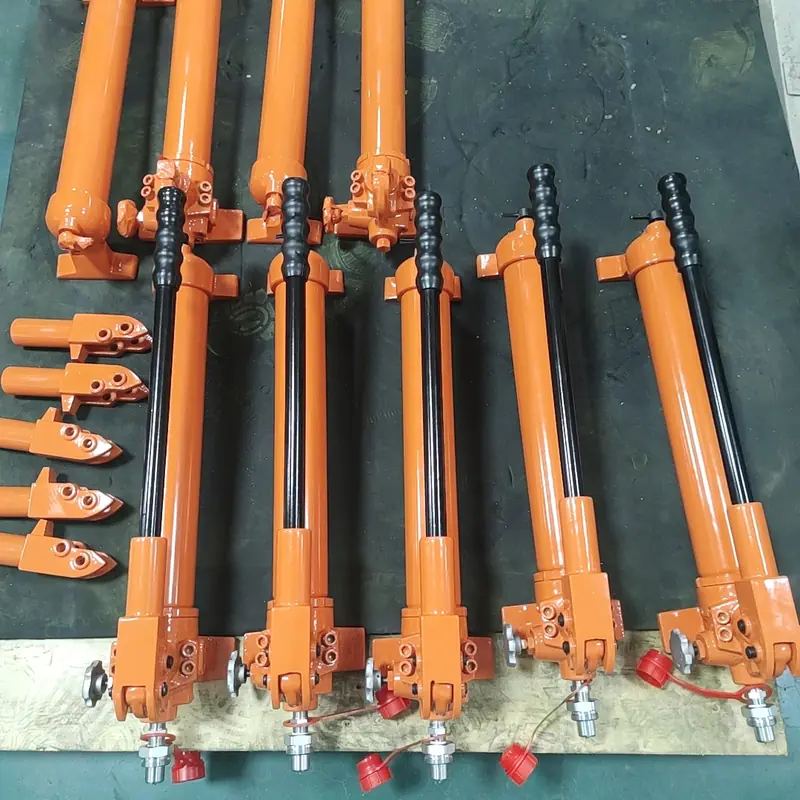

Image Gallery
Dimensions
SPS7-0.7 Two Speed,Single-acting Hydraulic Steel Hand Pump
| Model Number | Pump Type | Usable Oil Capacity (cm3) | Pressure Rating (bar) | Oil Displacement per Stroke (cm3) | Max. Handle Effort (kg) | Piston Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| P392 | Double speed | 655 | 1st stage: 25 2nd stage: 700 | 1st stage: 15 2nd stage: 2.62 | 50 | 20.6 | 5.9 |
| P80 | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 47 | 25.4 | 10.9 | |
| P84 | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 49 | 25.4 | 13.2 | |
| P462 | 7423 | 1st stage: 14 2nd stage: 700 | 1st stage: 26.20 2nd stage: 4.75 | 49 | 38.1 | 27 | |
| P464 | 7423 | 1st stage: 14 2nd stage: 700 | 1st stage: 26.20 2nd stage: 4.75 | 49 | 38.1 | 27.7 |
