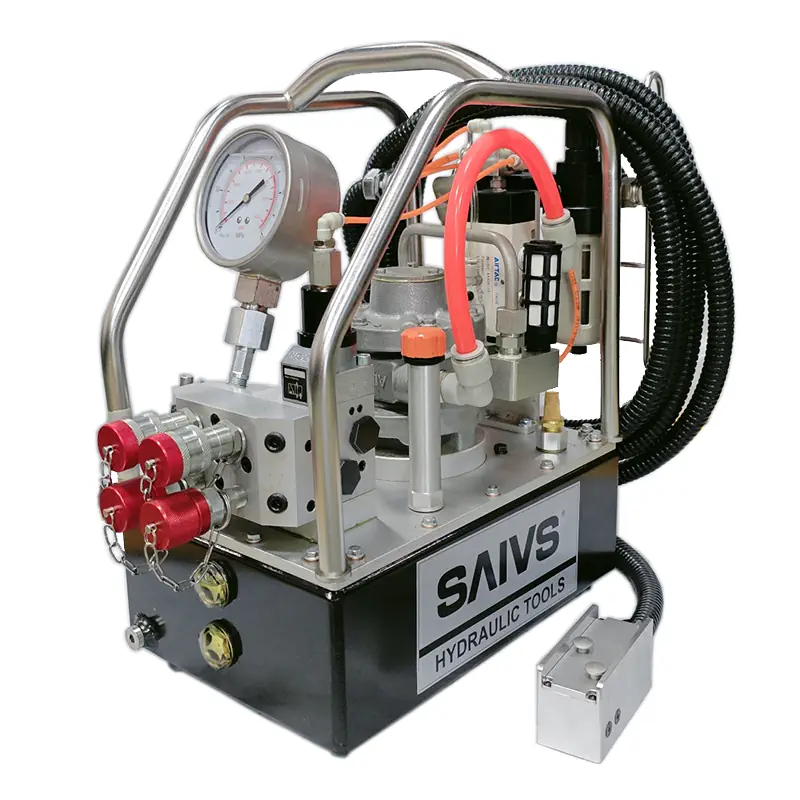

Air Driven Hydraulic Torque Wrench Pump SPA Series
-
Country of Origin China Flow At Rated Pressure 1.1 L / min Minimum Order 1Piece Motor Power 3 KW Reservoir Capacity 5 L Weight 22 KG Other Parameters Available input voltage: 115V, 230V, 380V, 415V, 440V. Available frequence: 50Hz / 60Hz - Air Driven Hydraulic Torque Wrench Pump SPA Series Ultra High Pressure Electric Pumps - PTE Series 700 bar/10000PSI Electric Hydraulic Pump HP1000DMIN, Two Speed 67.7 in³ Usable Oil,Hydraulic Sealed Hand Pump P391, Single Speed, Lightweight Hydraulic Hand Pump P142, Two Speed, Lightweight Hydraulic Hand Pump P80 Two Speed,Single-acting Hydraulic Steel Hand Pump P84 Two Speed, Hydraulic Steel Hand Pump,Double-Acting Cylinders PAT Series Foot Air Hydraulic Pumps JEA2-9,Gasoline Engine Hydraulics Wrench Pump
Description
Product Line: Industrial Tools
Customizable with special requirement
Three speed operation reduces cycle time for higher productivity and efficiency.
Default options with the manifold for simultaneous operation of 2 torque wrenches.
Super power-to-weight ratio, 22kg, great ease in carrying.
Output pressure range within 40-700 bar.
Excellent Built-in cooling system increase the reliability of the longtime running of the pump in harsh industrial environment.
Durable aluminum oil tank for excellent heat dissipation, rustproof, easy handling.
No electric control system for explosion-proof.
Image Gallery
Dimensions
| Model No. | Oil Flow (L/min) | Pressure (bar) | Power | Oil Capacity | Air Pressure Range | Weight | Dimensions | ||||
| High Pressure | Middle Pressure | Low Pressure | High Pressure | Middle Pressure | Low Pressure | kw | L | bar | kg | L x W x H(mm) | |
| SPA-70 | 1.1 | 2.2 | 9.0 | 700 | 300 | 70 | 3 | 5 | 4-8 | 22 | 490*229*500 |
