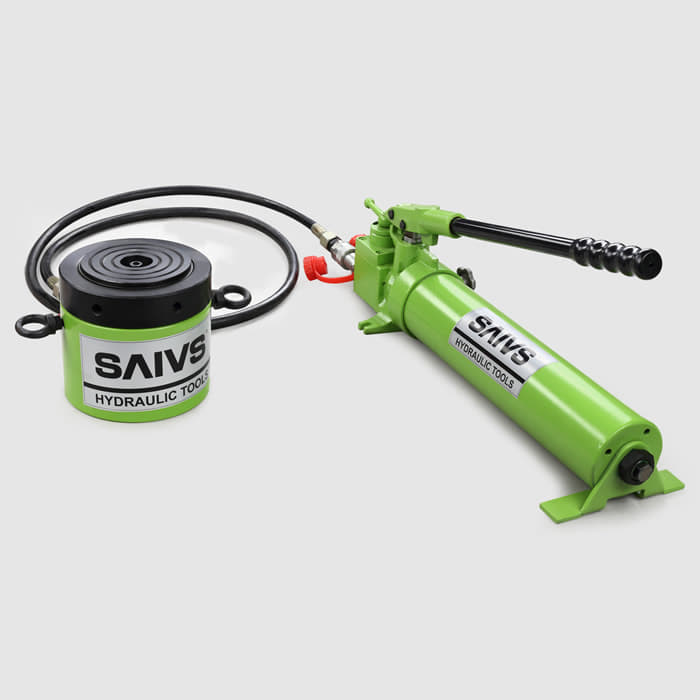

CLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder
-
Brand Name Replacement Enerpac's CLP Series Capacity 60-520ton Collapsed Height 125-192 mm Max.pressure 700 Bar/10000 Psi Minimum Order 1Piece Model CLP Series Oil Capacity 432-3287 Plunger Type Solid Return Type Single-Acting Spring Return Stroke 45-50mm Weight 15-188 kg Other Parameters Extended Height: 175-237 mmOutside Dia.: 140-400 mm Lock-nut Height: 28-62 mm - CLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder CLP1002, 100 ton 1027 KN, 50mm 1.97 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders CLP2002, 200 ton 1999 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders CLP1602, 160 ton 1619 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders CLP4002, 400 ton 3916 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders CLP2502, 260 ton 2567 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders CLP602, 60 ton 606 KN, 50mm 1.97 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders CLP5002, 520 ton 5114 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders
Description
- Model:CLP Series
- Product Line: Industrial Tools
- Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Single-Acting,load return.
Low profile design,fit in narrow application area.
Special painted surface to increase corrosion resistance.
Lock nut ensure the safety of long time load holding.
All model include quick couplings (NPT3/8"-18) and dust-proof cap.
Overflow port function could limit the stroke.
Removable hardened grooved saddles.
Customizable with special requirement.
ALL CLP-Series cylinders include integral tilt saddles with maximum tilt angles up to 4°.
Select SAIVS high quality high pressure hoses.
For longer stroke applications CLL-Series Lock-Nut Cylinders are the perfect choice.
How to choice the Hydraulic Cylinder and attachment?
Step 1: Choice the hydraulic syliner suitable for the working situation;
Step 2: Choice the hydraulic pump suitable for the cylinder and the working situation;
Step 3: Choice the hydraulic attachment;
How to choice the hydraulic cylinder's condition ?
Double-Acting series cylinders with hydraulic check valve.
Whether need working at narrow space,
Make sure the fuel capacity of hydraulic cylinder,
Whether need several cylinders are used together,
Whether need hydraulic cylinder with partial load work,
Whether need several hydraulic cylinders are working together,
Whether need keep the loading with long time,
Fuel capacity (cm)=The active area of cylinder X the stroke of cylinder (cm).
Whether need the steel stick or cable through off the hydraulic cylinder,
Choice the Hollow hydraulic cylinder ( RCH, RRH seris ).
The stress of cylinder(the rated pressure of cylinder is 20% more than actual loading capacity.
Whether need control with jack up and pull back,
Choice Tiltable saddle.
Choice the low flat hydraulic cylinder ( RCS, RSM, CLP series ).
Choice lock-nut hydraulic cylinder （CLP, CLL Series）
Choice Synchronous lifting system ( SPHF, SPHP series ).
Make sure the point quantity of jack up.
Height and stroke of cylinder requirement,
Which way of the cylinder use for,
Choice the correct height and stroke of cylinder according to the working situation.
Single-action only use for jack up, double-action can use for jack up and pull back.
Cylinder force ( kg )=Active area of cylinder ( cm ) X Hydraulic pump Pressure ( bat )
- Material:CR40
- Manufacturer:SAIVS
- Country of Origin:China
- Minimum Order:1 Piece
- Customizable with special requirement
