FS56, 5 Ton Hydraulic Flange Spreader
-
Capacity 5 ton Country of Origin China Manufacturer SAIVS Maximum Operating Pressure 700 bar/10000 Psi/70 Mpa Model Number FS-56 Oil Capacity 24.6 cm3 Spread 70 mm Weight 11.5 kg Other Parameters Stud Size: 19-28 mm - SWi12/14TM 15.7 Ton Mechanical Flange Spreader STF14H 14 Ton 3.16 in Hydraulic Flange Spreader Set SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader SWi2025TE 26.9 Ton 250 cm³ Hydraulic Flange Spreader SWI20/25TI 26.9 Ton Integral Hydraulic Flange Spreader SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader SWi2025TEMAXSPB 26.9 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set FA1TMSTD, 1 Ton 16 mm, Mechanical Flange Alignment Tool FA4TMSTD, 4 Ton 24 mm, Mechanical Flange Alignment Tool
Description
Product Line: Industrial Tools
Customizable with special requirement

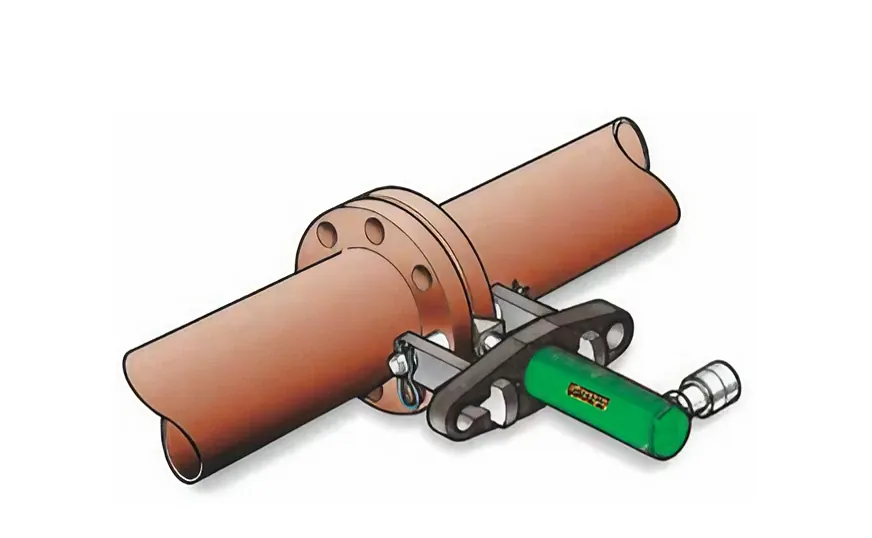

This is a lightweight, ergonomic manually operated Hydraulic Flange Spreader. It is easy to use with adjustable jaw widths from 70mm to 216mm for a wide range of applications. It features Single-Acting, Spring Return RC-Series cylinders for fast, trouble-free operation. The flange spreaders are available in sets (pump, tool, gauge, gauge adapter, couplers, and hose) for your ordering convenience.
Key Features:
Lightweight and ergonomic design for ease of use
Adjustable jaw widths from 70mm to 216mm for a wide range of applications
Single-acting, spring return RC-Series cylinders for fast, trouble-free operation
Available in sets (pump, tool, gauge, gauge adapter, couplers, and hose) for your ordering convenience
Benefits:
Easy to use and maneuver
Can be used on a variety of flange sizes
Durable and reliable
Convenient to purchase and use
Image Gallery
Dimensions
| Model | FS56 |
|---|---|
| Capacity/Ton | 5 |
| Max Flange Thickness/mm | 2X57 |
| Standard Wedge/mm | 2-28 |
| Stud Size/mm | 19-28 |
| Stroke/mm | 38 |
| Oil Capacity/cm³ | 24.6 |
| Weight/Kg | 11.5 |
| Dimension A/mm | 76 |
| Dimension B/mm | 209 |
| Dimension C/mm | 70 |
| Dimension D/mm | 32 |
| Dimension E/mm | 196 |
| Dimension F/mm | 88 |
| Dimension H/mm | 25 |
| Dimension I/mm | 206 |
| Dimension J/mm | 19 |
Details
Video
Literature
- 1. Choosing the Right Tool: Hydraulic vs. Mechanical Flange Separators
- 2.Tightening Techniques: Choosing the Right Method for Flange Assembly
- 3.How to Use a Hydraulic Flange Spreader Safely and Efficiently
- 4.Hydraulic Flange Spreaders: A Vital Tool for Industry
FAQs
What are hydraulic flange spreaders used for?
Hydraulic flange spreaders are used to separate or lift heavy equipment, typically in industrial settings. They work to create a safe and efficient way to handle large machines, pipelines, or tanks that would otherwise be difficult to move.
Where can I find reliable manufacturers and suppliers of hydraulic flange spreaders?
There are many reputable manufacturers and suppliers of hydraulic flange spreaders available online or in specialized industry catalogs. It is important to research and compare reviews and pricing from multiple sources to find the best fit for your needs.
