Hydraulic Compressor Crimping force 60 100 200ton

Hydraulic Compressor Crimping force 60 100 200ton

Crimping force	60Ton - 200Ton
Crimping range	≤Φ60mm(Copper/Al tube),≤Φ26mm(Steel tube)
Model	SCH-60/SCH-60A/SCH-100/SCH-200
package	Steel box
Stroke	22mm-40mm
Weight	220kg -85kg
Other Parameters	Rated Pressure: 700bar/10000PSI

Battery Powered Crimp Tools ED-300-400-400U CYO-410,Hydraulic Crimp Tools CYO-430,Hydraulic Crimp Tools CYO-510,Hydraulic Crimp Tools ED-400,Battery Powered Crimp Tools ED-300,Battery Powered Crimp Tools ED-400U,Battery Powered Crimp Tools Hydraulic Crimp Tools - CO-25/CO-45 Hydraulic Compressor Crimping force 60 100 200ton Hydraulic Crimp Tools CYO-410/CYO-430/CYO-510

Description

Product Line: Industrial Tools

Customizable with special requirement

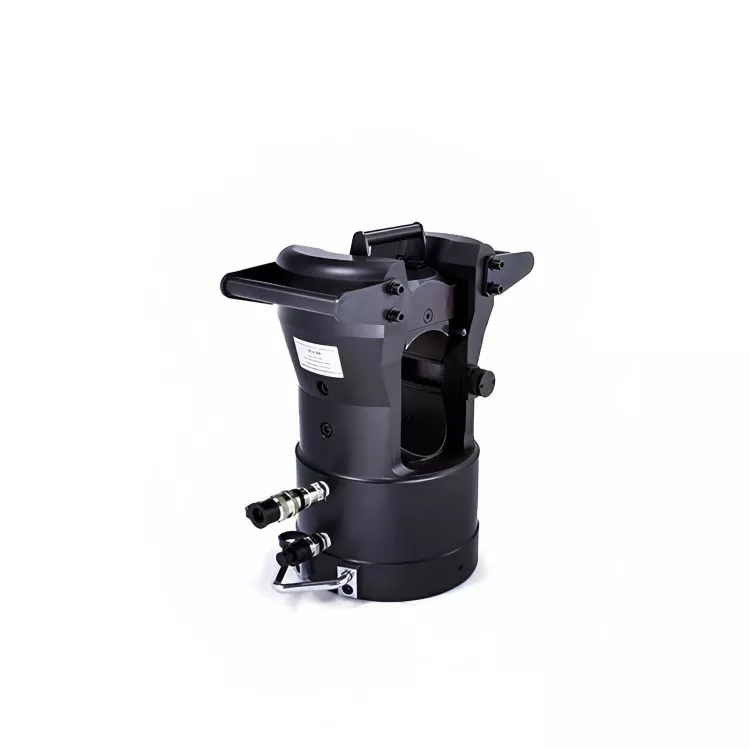

Hydraulic Compressor SCH-60A

Technical Specification

Model:SCH-60A

Crimping force:60Ton

Stroke:38.5mm

Rated Pressure:700bar

Crimping range:≤Φ60mm(Copper/Al tube),≤Φ26mm(Steel tube)

Weight:20kg

Package:steel box

Features:

5.Suitable for crimping the splicing sleeve and strain clamps of overhead ACSR and steel stranded wire for 110kV to 220kV transmission lines.

6.The head is a fixed seat for the upper mold which can be rotated and quickly opened to crimp the conductor easily.

7.The base can be disassembled and the crimp head can be transported upside down for aerial work

8.Equipped with quick couplings for easy disassembly

9.Connecting with Single Acting hydraulic pump

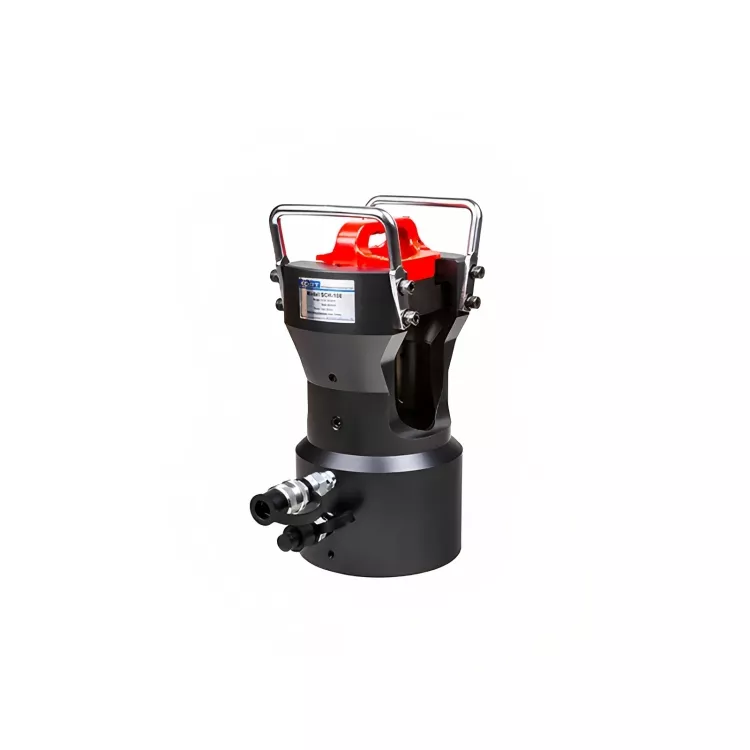

Hydraulic Compressor SCH-100

Technical Specification

Model:SCH-100

Crimping force:100Ton

Stroke:22mm

Rated Pressure:700bar

Crimping range:≤Φ76mm(Copper/Al tube),≤Φ36mm(Steel tube)

Oil cylinder type: Double Acting type

Weight:31kg

Package:steel box

Features:

1.Suitable for crimping of conductors and ground wires below ACSR720

2.Connect the double acting hydraulic pump station and the double acting Hydraulic Cylinder can shorten the piston resetting time.

3.Double acting hydraulic cylinder can avoid the problem of spring fatigue and slow return.

4.Equipped with quick couplings for easy disassembly

5.Connecting with double acting hydraulic pump

Hydraulic Compressor SCH-200

Technical Specification

Model:SCH-200

Crimping force:200Ton

Stroke:40mm

Rated Pressure:700bar

Crimping range:≤Φ100mm(Copper/Al tube),≤Φ50mm(Steel tube)

Oil cylinder type: double acting type

Weight:85kg

Package:steel box

Features:

10.Suitable for crimping of conductors and ground wires below ACSR1440

11.Connect the double acting hydraulic pump station and the double acting hydraulic cylinder can shorten the piston resetting time.

12.Double acting hydraulic cylinder can avoid the problem of spring fatigue and slow return.

13.Equipped with quick couplings for easy disassembly

14.Connecting with double acting hydraulic pump

Image Gallery

Dimensions

Technical Specification	SCH-60	SCH-60A	SCH-100	SCH-200
Model	SCH-60	SCH-60A	SCH-100	SCH-200
Crimping force	60T	60T	100T	200T
Stroke	38mm	38.5mm	22mm	40mm
Rated Pressure	700bar/10000PSI	700bar/10000PSI	700bar/10000PSI	700bar/10000PSI
Crimping range	≤Φ60mm (Copper/Al tube), ≤Φ26mm (Steel tube)	≤Φ60mm (Copper/Al tube), ≤Φ26mm (Steel tube)	≤Φ76mm (Copper/Al tube), ≤Φ36mm (Steel tube)	≤Φ100mm (Copper/Al tube), ≤Φ50mm (Steel tube)
Oil cylinder type	Double acting type	Double acting type	Double acting type	Double acting type
Weight	25kg	20kg	31kg	85kg
Package	Steel box	Steel box	Steel box	Steel box
