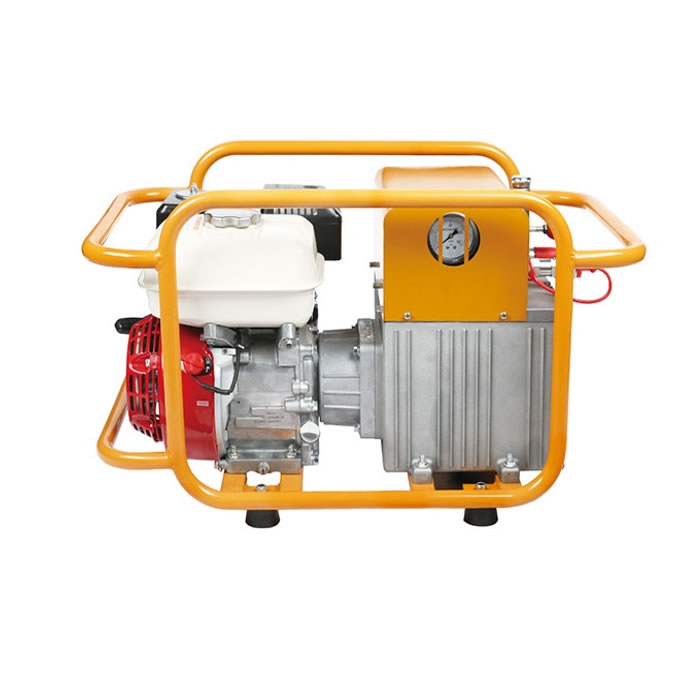

Remote Control Gasoline Engine Hydraulic Pump Station
-
Country of Origin China Manufacturer SAIVS Minimum Order 1Piece Weight 51kg(without oil) 、50KG Other Parameters Engine: Honda GX200 Flow: 2.7L/min(high pressure),15L/min(low pressure) Max Pressure: 80Mpa Dimension: 695mm*425mm*390mm Structural of reversing valve: Guiding valve Speed of motor: 3600rpm/min - Battery Powered Cable Cutter ED45/ED55/ED85/ED105 ED105,Battery Powered Cable Cutter ED85,Battery Powered Cable Cutter ED55,Battery Powered Cable Cutter Battery Powered Crimp Tools ED-300-400-400U CYO-410,Hydraulic Crimp Tools CYO-430,Hydraulic Crimp Tools CYO-510,Hydraulic Crimp Tools ED-400,Battery Powered Crimp Tools ED-300,Battery Powered Crimp Tools
Description
Product Line: Industrial Tools
Customizable with special requirement
Model:SVS-PE30 Technical specification:
Structural of reversing valve:Guiding valve
Engine:Honda GX200
Flow:2.7L/min(high pressure),15L/min(low pressure)
Max Pressure:80Mpa
Weight:51kg(without oil)
Dimension:695mm*425mm*390mm
Packing:Wooden Case
Purpose: Use for pressure conductor
Characteristic:
Structural optimization,Self-supply reset of pressure oil without traditional spring mechanism.
Avantages: compact structure, beautiful shape, light weight, stable and reliable quality, high Performance of the whole machine
Model:SVS-PE40 Technical specification:
Oil capacity:10L
Flow:1.2L/min(high pressure),7.5L/min(low pressure)
Pressure:700bar Speed of motor:3600rpm/min
Weight:50kg(without oil)
Packing:Wooden Case
Characteristic:
1.Large oil storage capacity, capable of withstanding large capacity crimping equipment and suitable for long time operation without causing engine overheating
2.Adopt high and low pressure two-speed automatic switching design, which can easily promote the work of 60T, 100T, 200T, 300T and other crimping machines
3.The rated working pressure is 70Mpa, and max working pressure can reach 85Mpa
4.With efficient, fast and excellent output performance
5.Simple structure, convenient operation and light weight
6.Double-circuit manual control, internally designed pressure protection system for crimping return
7.Design have safety overflow protection valve to protect crimping equipment
8.Low noise, environmentally friendly gasoline engine hydraulic pump
9.Equipped with a pressure gauge, which can easily and clearly read the working pressure
Image Gallery
Dimensions
| Model | SVS-PE30 |
| Structural of Reversing Valve | Guiding valve |
| Engine | Honda GX200 |
| Flow - High Pressure (L/min) | 2.7 |
| Flow - Low Pressure (L/min) | 15 |
| Maximum Pressure (Mpa) | 80 |
| Weight (kg) | 51 (without oil) |
| Dimension (mm) | 695x425x390 |
| Model | SVS-PE40 |
| Oil Capacity (L) | 10 |
| Flow - High Pressure (L/min) | 1.2 |
| Flow - Low Pressure (L/min) | 7.5 |
| Maximum Pressure (Mpa) | 700 |
| Maximum Working Pressure (Mpa) | 85 |
| Speed of Motor (rpm) | 3600 |
| Weight (kg) | 50 (without oil) |
Literature
- 1.SAIVS Shipment Log NO.1: Tracking the Delivery of Customized Hydraulic Tools
- 2.Heavy-Duty 50 / 100 Ton Hydraulic Cylinders & Jacks from SAIVS – Precision, Power, and Performan
- 3.How to Check and Maintain Drive Hydraulic Wrench Safely
- 4.Portable Flange Spreaders for On-Site Maintenance: Hydraulic Solutions by SAIVS
- 5.How to Choose the Right Hydraulic Torque Wrench for Your Project
- 6.Log No. 7:Hydraulic Hand Pump Set To Brazil Oil Company
- 7.Precautions for using preset torque wrenches
FAQs
what is a remote control gasoline engine hydraulic pump station?
a remote control gasoline engine hydraulic pump station is a machine that is used to power hydraulic systems using a gasoline engine and can be operated remotely.
what are the applications of a remote control gasoline engine hydraulic pump station?
a remote control gasoline engine hydraulic pump station is commonly used in various applications such as construction, mining, drilling, and agriculture where hydraulic power is required.
how does a remote control gasoline engine hydraulic pump station work?
a remote control gasoline engine hydraulic pump station works by converting the mechanical energy from a gasoline engine into hydraulic pressure, which is then used to drive hydraulic motors, cylinders, or other hydraulic components.
what are the advantages of using a remote control gasoline engine hydraulic pump station?
the advantages of using a remote control gasoline engine hydraulic pump station include its mobility, flexibility, and ability to provide hydraulic power in locations where electricity or other power sources may not be available.
how do you maintain a remote control gasoline engine hydraulic pump station?
to maintain a remote control gasoline engine hydraulic pump station, regular inspection, cleaning, and lubrication of all its components is necessary. it is also important to follow the manufacturer's guidelines for servicing and replacing parts at recommended intervals.
