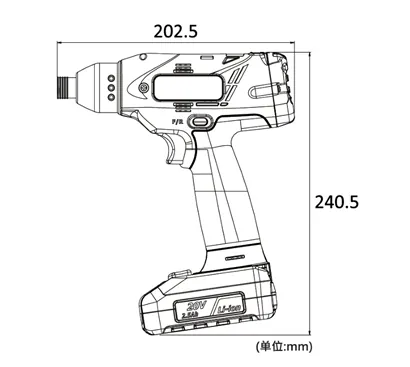

SCW-P008H 3-8 Nm 1/4"Hex, Battery Torque Gun
-
Applicable bolts( mm ) M4-M5 Country of Origin China Drive head( inch ) 1/4"Hex Manufacturer SAIVS Minimum Order 1 Piece Model SCW-P008H No-load speed( rpm ) 220-1100 Torque range( ft-lb ) 2.2-5.9 Torque range( Nm ) 3-8 Voltage(V) 20 Weight 1.01 kg | 2.23 lb - Battery Powered Brushless Torque Wrench SCW-A Series SCW-14A , 338-1350Nm, 0.75/1 inch Battery Powered Brushless Torque Wrench SCW-30A , 700-3000Nm, 1 inch Battery Powered Brushless Torque Wrench SCW-20A , 525-2000Nm, 1 inch Battery Powered Brushless Torque Wrench SCW-3A , 100-300Nm, 0.75 inch Battery Powered Brushless Torque Wrench SCW-40A , 1000-4000Nm, 1 /1.5 inch Battery Powered Brushless Torque Wrench SCW-60A , 1500-6000Nm,1.5 inch Battery Powered Brushless Torque Wrench SCW-5A , 150-500Nm, 0.75 inch Battery Powered Brushless Torque Wrench SCW-80A , 2000-8000Nm,1.5 inch Battery Powered Brushless Torque Wrench SCW-7A , 200-700Nm, 0.75 inch Battery Powered Brushless Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
This battery-powered Torque Wrench offers accurate and repeatable torque, enhancing both performance and safety compared to impact torque wrenches. Weighing only 2.23 lb (1.01 kg), it boasts an excellent power-to-weight ratio, with a torque range of just 3-8 Nm.
This Electric Torque Multiplier uses a rechargeable lithium-ion battery for long-lasting battery life. It comes complete with a battery, charging cradle, and power cord.
It features an intuitive user interface and easy-to-understand menu options, making it ideal for both new users and experienced bolting professionals. With unmatched portability and convenience, this tool is perfect for a wide range of applications.
Image Gallery
Details
Series Comparison
| Model | Voltage(V) | Drive head(inch) | Applicable bolts(mm) | Torque range(Nm) | Torque range(ft-lb) | No-load speed(rpm) | Noise level(dBA) | Weight(kg) | Weight(lb) |
| SCW-P008H | 20 | 1/4"Hex | M4-M5 | 3-8 | 2.2-5.9 | 220-1100 | <75 | 1.01 | 2.23 |
| SCW-P008S | 20 | 3/8"Sq | M4-M5 | 3-8 | 2.2-5.9 | 220-1100 | <75 | 1.01 | 2.23 |
| SCW-P012H | 20 | 1/4"Hex | M4-M6 | 4-12 | 3.0-8.9 | 150-750 | <75 | 1.01 | 2.23 |
| SCW-P012S | 20 | 3/8"Sq | M4-M6 | 4-12 | 3.0-8.9 | 150-750 | <75 | 1.01 | 2.23 |
| SCW-P016H | 20 | 1/4"Hex | M5-M6 | 5-16 | 3.7-11.8 | 100-500 | <75 | 1.01 | 2.23 |
| SCW-P016S | 20 | 3/8"Sq | M5-M6 | 5-16 | 3.7-11.8 | 100-500 | <75 | 1.01 | 2.23 |
*Weight (without battery)
