SAT-TC Series Servo Electric Torque Wrench SAT-TC Series Servo Electric Torque Wrench

SAT-TC Series Servo Electric Torque Wrench

Description

Product Line: Industrial Tools

Customizable with special requirement

Tightening Function (Can Be Shared With User Controller Function)

  • External input data; Free Format function:

  • 3% accuracy, 2% repeatability, TC version up to 2% accuracy, wider torque

  • Parameter setting with graphical menu function:

  • User needs, output data can be freely selected

Tighten Basic Functions

  • Tightening control methods: torque method, angle method, yield limit method (optional)

  • Monitoring: Torque Angle Sweep Torque Ratio Time Current

  • Tightening steps: multiple processes can be selected to support initial tightening and final tightening fast setting.

  • Tightening parameters: 10 or more sets

  • Maximum tightening: 20-10 000 Nm (smaller torque can be Customized)

  • Maximum Connection Nodes: 32 to 256, depending on the overall structure of the host computer and system

Basic Functions of Data

Data saving/reading/printing (optional)

  • Communication

Support Standard Modbus, Profibus, Etc.

  • Wireless Function

Supporting Wireless Transmission Function

Usb Storage Function

  • Supporting Usb Connection Storage Card Backup Data

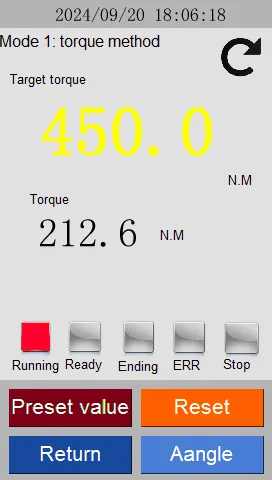

Torque Electric SAT Series

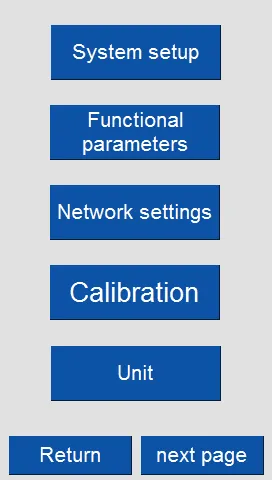

Torque Electric SAT Series

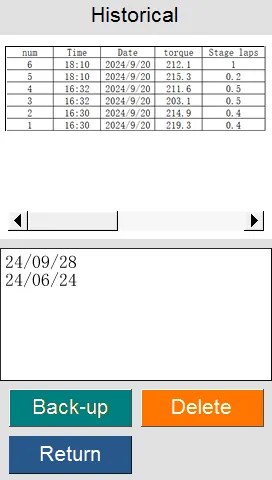

Torque Electric SAT Series Historical


Image Gallery

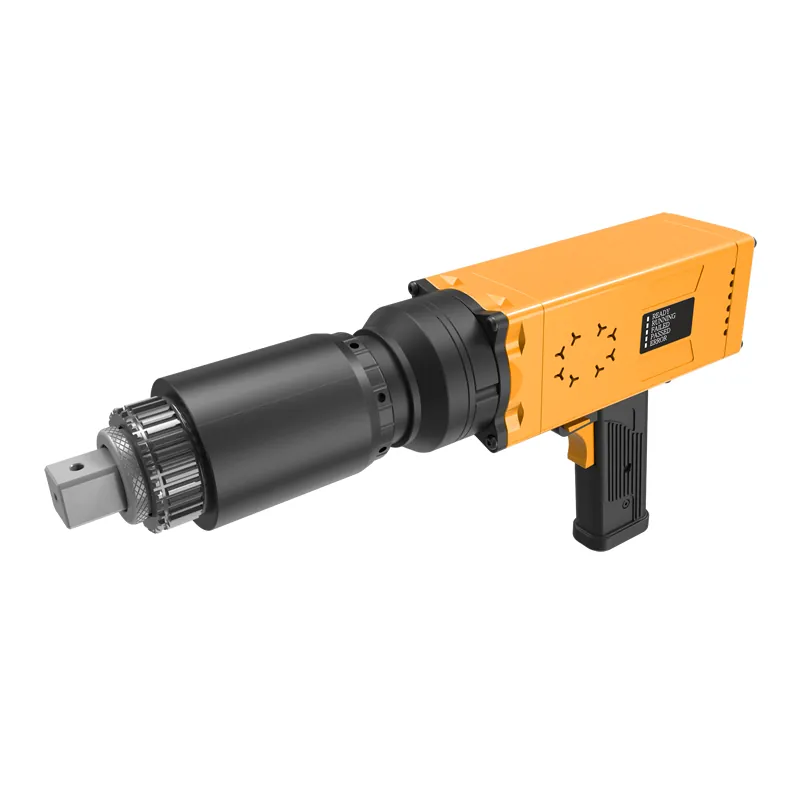

SAT-TC Series Servo Electric Torque Wrench SAT-TC Series Servo Electric Torque Wrench

Dimensions

A1291mm291mm316mm323mm326mm341mm408mm431mm441mm527mm
A2371mm371mm399mm404mm412mm424mm426mm469mm479mm561mm
B65mm65mm65mm69mm76mm78mm83mm93mm102mm114mm
C67mm67mm71mm72mm76mm78mm90mm101mm102mm114mm
D212mm212mm213mm213mm213mm214mm235mm241mm241mm246mm
SAT-TC Series Servo Electric Torque Wrench Dimensions Image-1 SAIVS

Details

Series Comparison


Material CodeModelTorque Range (Nm)Driving SquareSpeed (RPM)Weight W1Weight W2Noise
341001SAT-4/TC80-4000.75"474.5kg5.7kg80dB
341002SAT-6/TC120-6000.75"254.5kg5.7kg80dB
341004SAT-10/TC200-10000.75"16.44.6kg5.8kg80dB
341006SAT-16/TC320-16001"11.84.9kg6.1kg80dB
341008SAT-20/TC400-20001"9.35.8kg7kg80dB
341010SAT-30/TC600-30001"7.86.7kg7.9kg85dB
341012SAT-40/TC800-40001" / 1.5"5.87.5kg8.7kg85dB
341013SAT-60/TC1200-60001.5"3.710.2kg11.4kg85dB
341014SAT-80/TC1600-80001.5"2.911.5kg12.7kg85dB
341015SAT-100/TC2000-100001.5" / 2"217.8kg19kg85dB

ps: SAT is W1, A1; SAT -TC is W2, A2. * stands for the torque and can be changed to bent-shaped. If there are minor adjustments for some models, please refer

to the factory. Parameters.
